Buy Lovejoy 68514456231, L225 L Type Hub without Keyway - Metric Bore

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Keyway Size:: Keyway Size: No Keyway
Bore Size:: Bore Size: 55 mm
Coupling Size:: Coupling Size: 225

Lovejoy, 68514456231, L225 L Type Hub without Keyway - Metric Bore, 55 mm, No Keyway

Features:

Fail-safe - will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease

Standard L Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276). The L Type coupling consists of two standard L Type hubs and one spider. Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	7.83 lb
Weight (Complete Coupling w/ Min. Bore)	15.00 lb
Weight (Complete Coupling w/ Max. Bore)	19.60 lb
Bore Size	55.00 mm
Coupling Size	L225
Keyway Size (W x D)	No Keyway

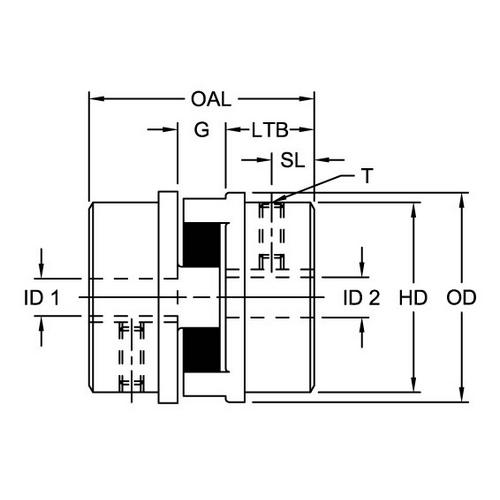

Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Outer Diameter	5.00 in (127.00 mm)
Dimension SL	1.000 in (25.40 mm)
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in x lb (264.38 N x m)
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Product Details

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	7.83 lb
Weight (Complete Coupling w/ Min. Bore)	15.00 lb
Weight (Complete Coupling w/ Max. Bore)	19.60 lb
Bore Size	55.00 mm
Coupling Size	L225
Keyway Size (W x D)	No Keyway
Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Outer Diameter	5.00 in (127.00 mm)
Dimension SL	1.000 in (25.40 mm)
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in x lb (264.38 N x m)
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Note

Note: Please read description carefully. Do not base your order on the picture presented.
