Buy Lovejoy 68514456003, L225 L Type Hub - Rough Stock Bore, 3/4 in

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514456003, L225 L Type Hub - Rough Stock Bore, 3/4 in, No Keyway

Features:

Fail-safe - will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease
Standard L Type coupling hub materials are either sintered iron (L035-L190) or cast iron (L225-L276).
The L Type coupling consists of two standard L Type hubs and one spider.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Return and Warranty

Please note that return requests for Lovejoy items must be submitted within 14 days after the delivery date.

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Bore Type	Rough Stock Bore
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	10.00 lb
Weight (Complete Coupling w/ Min. Bore)	15.00 lb
Weight (Complete Coupling w/ Max. Bore)	19.60 lb
Bore Size	3/4 in
Coupling Size	L225

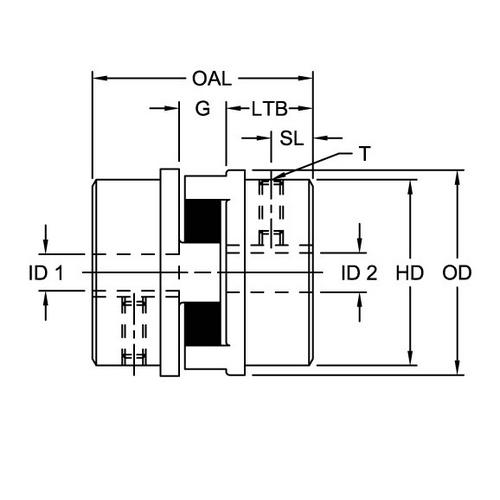

Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Outside Diameter	5.00 in (127.00 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	1.000 in (25.40 mm)
Dimension T	1/2-13
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in x lb
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
Bore Type	Rough Stock Bore
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	10.00 lb
Weight (Complete Coupling w/ Min. Bore)	15.00 lb
Weight (Complete Coupling w/ Max. Bore)	19.60 lb
Bore Size	3/4 in
Coupling Size	L225
Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Outside Diameter	5.00 in (127.00 mm)
Min. Bore	0.750 in (19.00 mm)
Max. Bore	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	1.000 in (25.40 mm)
Dimension T	1/2-13
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in x lb
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Please note that return requests for Lovejoy items must be submitted within 14 days after the delivery date.

Note: Please read description carefully. Do not base your order on the picture presented.
