Lovejoy 68514455062 14S S Type Flange with Keyway - Imperial Bore

Keyway Size: 1/2 x 1/4 in, Bore Size: 2-1/8 in, Coupling Size: 14
  • Brand Lovejoy
  • Part # 68514455062
  • Model # 14S
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Keyway Size:
Keyway Size: 1/2 x 1/4 in
Bore Size:
Bore Size: 2-1/8 in
Coupling Size:
Coupling Size: 14

Lovejoy, 68514455062, 14S S Type Flange with Keyway - Imperial Bore, 2-1/8 in, 1/2 x 1/4 in

Features:

  • S Flange are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts.
  • The S Type coupling consists of two Flange and one sleeve.
  • All standard finished bore keyway Flange have 2 set screws at 90 Deg.


See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Size14S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight69.10 lb
Bore Size2-1/8 in

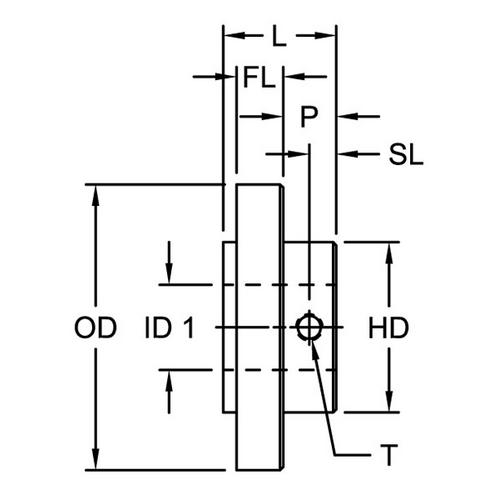

Thread (Dimension T)5/8-11
Keyway Size (W x D)1/2 x 1/4 in
Outside Diameter13.875 in (352.43 mm)
Max. Bore5.000 in
Dimension FL2.250 in (57.15 mm)
Dimension HD7.500 in (190.50 mm)
Dimension L4.500 in (114.30 mm)
Dimension P1.060 in (26.92 mm)
Dimension SL0.620 in (15.75 mm)
Cubic inches866.32031 in3
Nominal Torque (with EPDM Sleeve)18000 in x lb
Max. Speed2200 rpm
Torsional Stiffness68755.00 in x lb/rad
Rated HP at 100 rpm28.60 hp
Rated HP at 1,200 rpm343.00 hp
Rated HP at 1,800 rpm514.00 hp
Product Details
Coupling Size14S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight69.10 lb
Bore Size2-1/8 in
Thread (Dimension T)5/8-11
Keyway Size (W x D)1/2 x 1/4 in
Outside Diameter13.875 in (352.43 mm)
Max. Bore5.000 in
Dimension FL2.250 in (57.15 mm)
Dimension HD7.500 in (190.50 mm)
Dimension L4.500 in (114.30 mm)
Dimension P1.060 in (26.92 mm)
Dimension SL0.620 in (15.75 mm)
Cubic inches866.32031 in3
Nominal Torque (with EPDM Sleeve)18000 in x lb
Max. Speed2200 rpm
Torsional Stiffness68755.00 in x lb/rad
Rated HP at 100 rpm28.60 hp
Rated HP at 1,200 rpm343.00 hp
Rated HP at 1,800 rpm514.00 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
