Buy Lovejoy 68514452092, L110 L Type Hub with Keyway - Metric Bore, 16 mm

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Lovejoy, 68514452092, L110 L Type Hub with Keyway - Metric Bore, 16 mm, 5 x 2.3 mm

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

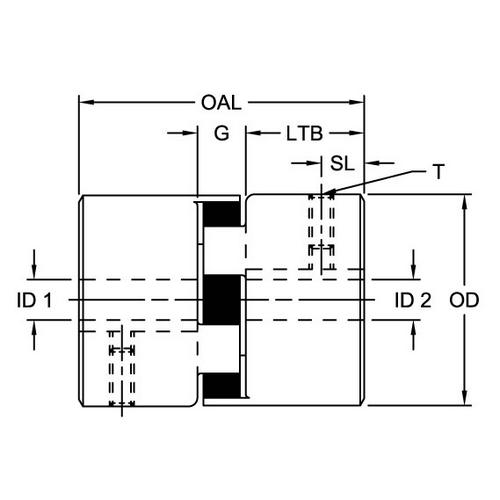

Technical Details

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.10 lb
Weight (Complete Coupling w/ Min. Bore)	5.30 lb
Weight (Complete Coupling w/ Max. Bore)	6.60 lb
Bore Size	16.00 mm
Coupling Size	L110
Keyway Size (W x D)	5 x 2.3 mm
Length thru Bore	1.68 in (42.67 mm)
Overall Length	4.220 in (107.19 mm)
Outside Diameter	3.32 in (84.33 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.625 in (41 mm)
Hub Length	2.56 in (65.02 mm)
Dimension G	0.88 in (22.35 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.21734 in3
Nominal Torque	792.00 in x lb (89.48 N x m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	1.26 hp
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
Elastomeric Member	SOX (NBR) Rubber
Weight	3.10 lb
Weight (Complete Coupling w/ Min. Bore)	5.30 lb
Weight (Complete Coupling w/ Max. Bore)	6.60 lb
Bore Size	16.00 mm
Coupling Size	L110
Keyway Size (W x D)	5 x 2.3 mm
Length thru Bore	1.68 in (42.67 mm)
Overall Length	4.220 in (107.19 mm)
Outside Diameter	3.32 in (84.33 mm)
Min. Bore	0.625 in (16.00 mm)
Max. Bore	1.625 in (41 mm)
Hub Length	2.56 in (65.02 mm)
Dimension G	0.88 in (22.35 mm)
Dimension SL	0.750 in (19.05 mm)
Cubic inches	28.21734 in3
Nominal Torque	792.00 in x lb (89.48 N x m)
Max. Speed	5000 rpm
Rated HP at 100 rpm	1.26 hp
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp

Note: Please read description carefully. Do not base your order on the picture presented.
