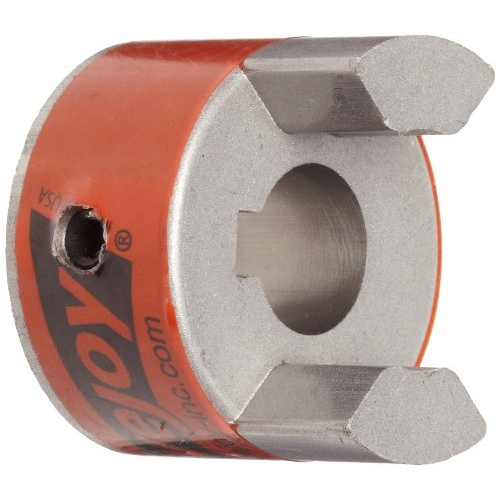

Lovejoy, 68514446121, L050 L Type Hub with Keyway - Inch (Imperial) Bores, 3/8"

Features:

Fail-safe – will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease
More than 850,000 combinations of bore sizes
Jaw coupling hubs are standard with one set screw, for two set screws see RRS & RRC sections.

Spider Performance:

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
# of Jaws	2
Elastomeric Member	SOX (NBR) Rubber
Weight	0.12 lb
Weight (Complete Coupling w/ Max. Bores)	0.30 lb
Weight (Complete Coupling w/ Min. Bores)	0.20 lb
Dimensional Data
Bore Size	3/8 in
Coupling Size	L050
Keyway Size (W x D)	3/32 x 3/64 in
Length thru Bore	0.620 in 15.75 mm
Overall Length	1.710 in 43.43 mm
Outside Diameter	1.08 in 27.43 mm
Min. Bore (Dimensions ID1/ID2)	0.250 in 6.00 mm
Max. Bore (Dimensions ID1/ID2)	0.625 in 16.00 mm
Hub Length	1.100 in 27.94 mm
Dimension G	0.480 in 12.19 mm
Dimension SL	0.310 in 7.87 mm
Dimension T	1/4-20
Cubic inches	1.28304 in³
Performance Data
Nominal Torque	26.30 in·lb
Max. Speed	18000 rpm
Rated HP at 100 rpm	0.04 hp
Rated HP at 1200 rpm	0.50 hp
Rated HP at 1800 rpm	0.75 hp
Rated HP at 3600 rpm	1.51 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).


Hub Style	1
Coupling Type	Jaw
Material	Sintered Iron
Color	Metallic
# of Jaws	2
Elastomeric Member	SOX (NBR) Rubber
Weight	0.12 lb
Weight (Complete Coupling w/ Max. Bores)	0.30 lb
Weight (Complete Coupling w/ Min. Bores)	0.20 lb
Dimensional Data
Bore Size	3/8 in
Coupling Size	L050
Keyway Size (W x D)	3/32 x 3/64 in
Length thru Bore	0.620 in 15.75 mm
Overall Length	1.710 in 43.43 mm
Outside Diameter	1.08 in 27.43 mm
Min. Bore (Dimensions ID1/ID2)	0.250 in 6.00 mm
Max. Bore (Dimensions ID1/ID2)	0.625 in 16.00 mm
Hub Length	1.100 in 27.94 mm
Dimension G	0.480 in 12.19 mm
Dimension SL	0.310 in 7.87 mm
Dimension T	1/4-20
Cubic inches	1.28304 in³
Performance Data
Nominal Torque	26.30 in·lb
Max. Speed	18000 rpm
Rated HP at 100 rpm	0.04 hp
Rated HP at 1200 rpm	0.50 hp
Rated HP at 1800 rpm	0.75 hp
Rated HP at 3600 rpm	1.51 hp

Note: Please read description carefully. Do not base your order on the picture presented.
