Lovejoy, 68514437263, L Type Hub with Keyway, L225, 1"

Features:

Standard L Type coupling hub materials are either cast iron.
The L Type coupling consists of two standard L Type hubs.
Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.
Fail-safe will still perform if elastomer fails
No metal to metal contact
Resistant to oil, dirt, sand, moisture and grease

Spider Performance:

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)

Applications:

Jaw coupling hubs are standard with one set screw, for two set screws see RRS & RRC sections.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	9.19 lb
Weight (Complete Coupling w/ Max. Bores)	19.60 lb
Weight (Complete Coupling w/ Min. Bores)	15.00 lb
Bore Size	1 in
Coupling Size	L225
Keyway Size (W x D)	3/16 x 3/32 in

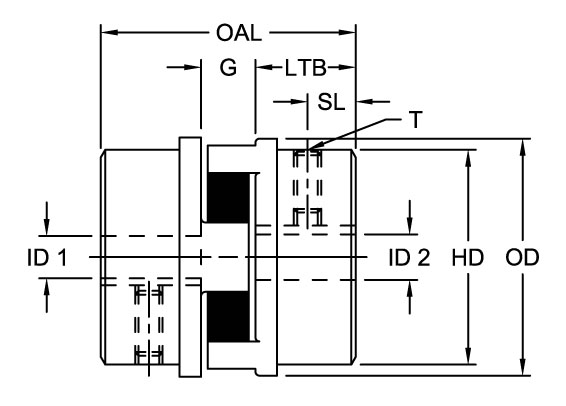

Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Outside Diameter	5.00 in (127.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.750 in (19.00 mm)
Max. Bore (Dimensions ID1/ID2)	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	1.000 in (25.40 mm)
Dimension T	1/2-13
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in-lb
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Hub Style	2
Coupling Type	Jaw
Material	Cast Iron
Color	Metallic
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	9.19 lb
Weight (Complete Coupling w/ Max. Bores)	19.60 lb
Weight (Complete Coupling w/ Min. Bores)	15.00 lb
Bore Size	1 in
Coupling Size	L225
Keyway Size (W x D)	3/16 x 3/32 in
Length thru Bore	2.180 in (55.37 mm)
Overall Length	5.340 in (135.64 mm)
Outside Diameter	5.00 in (127.00 mm)
Min. Bore (Dimensions ID1/ID2)	0.750 in (19.00 mm)
Max. Bore (Dimensions ID1/ID2)	2.625 in (67 mm)
Hub Length	3.180 in (80.77 mm)
Dimension G	1 in (25.40 mm)
Dimension SL	1.000 in (25.40 mm)
Dimension T	1/2-13
Cubic inches	79.50000 in3
Nominal Torque	2340.00 in-lb
Max. Speed	4200 rpm
Rated HP at 100 rpm	3.70 hp
Rated HP at 1,200 rpm	44.40 hp
Rated HP at 1,800 rpm	67.00 hp
Rated HP at 3,600 rpm	133.20 hp

Note: Please read description carefully. Do not base your order on the picture presented.
