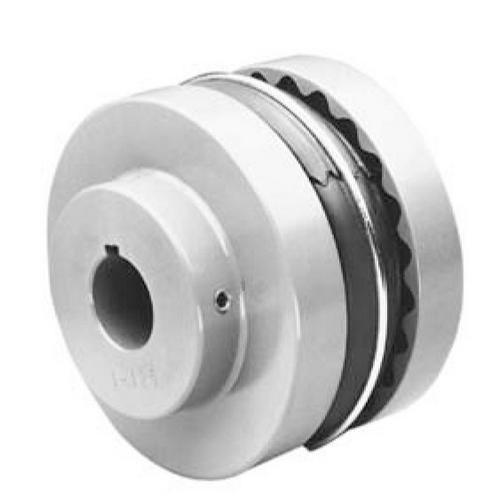

Lovejoy 68514436980 10S Flange with Keyway, 1-9/16"

  • Brand Lovejoy
  • Part # 68514436980
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Lovejoy, 68514436980, 10S Flange with Keyway, 1-9/16", S Type, Imperial

S flanges are made of high strength cast iron and are bored-to- size for a slip fit on standard shafts. S flanges are easy to install, are readily from stock in a wide range of popular bore sizes, and are supplied with two set screws at 90°. The S Type coupling consists of two flanges and one sleeve. All standard finished bore keyway flanges have 2 set screws at 90°. Sizes 13, 14 and 16 RSB flanges are suitable for reboring and have two set screws at 90°. Sizes 5-12 RSB flanges have no set screws. Metric Bore / Keyway per DIN specifications. Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Coupling Type10S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight11.00 lb
Dimensional Data
Bore Size1-9/16 in
Thread (Dimension T)1/2-13
Keyway Size (W x D)3/8 x 3/16 in
Outside Diameter7.500 in (190.50 mm)
Max. Bore (Dimension ID)2.750 in
Dimension FL1.220 in (30.99 mm)
Dimension HD4.380 in (111.25 mm)
Dimension L2.700 in (68.58 mm)
Dimension P0.810 in (20.57 mm)
Dimension SL0.410 in (10.41 mm)
Cubic inches151.87500 in3
Performance Data
Nominal Torque (with EPDM Sleeve)2875 in-lb
Max. Speed3600.00 rpm
Torsional Stiffness10980.00 in-lb/rad
Rated HP at 100 rpm4.60 hp
Rated HP at 1200 rpm55.00 hp
Rated HP at 1800 rpm82.00 hp
Rated HP at 3600 rpm164.00 hp
Product Details
Coupling Type10S
TypeCoupling Flange
MaterialCast Iron
ColorGray
Bore TypeFinished Bore
Coupling TypeS-Flex
Weight11.00 lb
Dimensional Data
Bore Size1-9/16 in
Thread (Dimension T)1/2-13
Keyway Size (W x D)3/8 x 3/16 in
Outside Diameter7.500 in (190.50 mm)
Max. Bore (Dimension ID)2.750 in
Dimension FL1.220 in (30.99 mm)
Dimension HD4.380 in (111.25 mm)
Dimension L2.700 in (68.58 mm)
Dimension P0.810 in (20.57 mm)
Dimension SL0.410 in (10.41 mm)
Cubic inches151.87500 in3
Performance Data
Nominal Torque (with EPDM Sleeve)2875 in-lb
Max. Speed3600.00 rpm
Torsional Stiffness10980.00 in-lb/rad
Rated HP at 100 rpm4.60 hp
Rated HP at 1200 rpm55.00 hp
Rated HP at 1800 rpm82.00 hp
Rated HP at 3600 rpm164.00 hp
Note

Note: Please read description carefully. Do not base your order on the picture presented.
