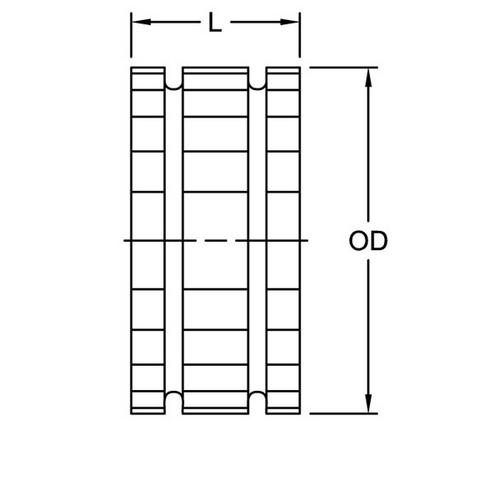

Lovejoy 68514435455 10HS HS-Type Elastomer Sleeve

Features:

• The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
• Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
• No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
• Torque is transmitted through shear loading of the sleeve
• The sleeve in Hytrel material is designed to transmit power for high torque applications
• Operating Hytrel within a high service factor application is not recommended.
• HS Type sleeves are designed for high torque applications, transmitting about 4 times as much power as an equivalent EPDM or Neoprene sleeve.
• Hytrel sleeves can be used only with S or SC flanges and can not be used with J or B flanges.
• Hytrel sleeves should not be used as direct replacements for EPDM or Neoprene applications.
