Buy Lovejoy 68514435449, 16B B-Type Flange for Use with Bushings

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Model B (bushed) flange is made of the high-strength cast iron
B flange is designed to accommodate the industry standard bushing for easy installation and removal

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Coupling Size	16B
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Weight	120.00 lb
Bore Type	Bored to Accept F QD Bushing
Bushing Required	J
Coupling Type	S-Flex

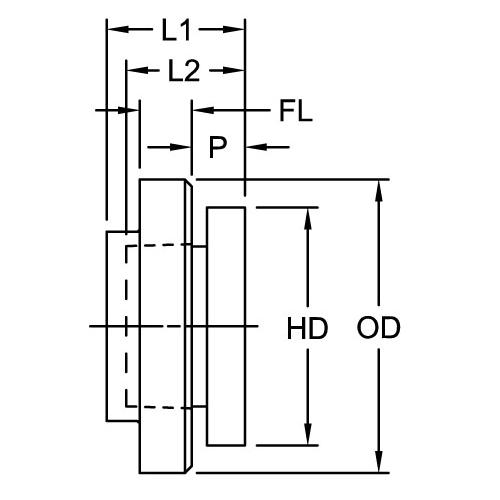

Dimensional Data
Keyway Size (W x D)	No Keyway
Hub Diameter	7.250 in (184.15 mm)
Outside Diameter	18.875 in (479.43 mm)
Approx. Bore	4.500 in (114.30 mm)
Dimension FL	2.750 in (69.85 mm)
Dimension L1	4.750 in (120.65 mm)
Dimension L2	4.500 in (114.30 mm)
Dimension P	1.190 in (30.23 mm)
Cubic inches	1603.19531 in3
Performance Data
Nominal Torque (with EPDM Sleeve)	47250 in-lb (5338.54 N-m)
Max. Speed	1500.00 rpm
Torsional Stiffness	180480.00 in-lb/rad
Rated HP at 100 rpm	75.00 hp
Rated HP at 1200 rpm	900.00 hp


Coupling Size	16B
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Weight	120.00 lb
Bore Type	Bored to Accept F QD Bushing
Bushing Required	J
Coupling Type	S-Flex
Dimensional Data
Keyway Size (W x D)	No Keyway
Hub Diameter	7.250 in (184.15 mm)
Outside Diameter	18.875 in (479.43 mm)
Approx. Bore	4.500 in (114.30 mm)
Dimension FL	2.750 in (69.85 mm)
Dimension L1	4.750 in (120.65 mm)
Dimension L2	4.500 in (114.30 mm)
Dimension P	1.190 in (30.23 mm)
Cubic inches	1603.19531 in3
Performance Data
Nominal Torque (with EPDM Sleeve)	47250 in-lb (5338.54 N-m)
Max. Speed	1500.00 rpm
Torsional Stiffness	180480.00 in-lb/rad
Rated HP at 100 rpm	75.00 hp
Rated HP at 1200 rpm	900.00 hp

Note: Please read description carefully. Do not base your order on the picture presented.
