Lovejoy, 10S 2-1/4" S-Type Flange with Keyway - Inch (Imperial) Bores

Features:

S flange is made of high strength cast iron
S flange is easy to install, and is supplied with two set screws at 90°
The S Type coupling consists of two flanges and one sleeve
Metric Bore / Keyway per DIN specifications
Spacing between shafts should be greater than 1/8 inch and less than OAL minus the sum of the two bore dimensions

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Coupling Size	10S
Type	Coupling Flange
Material	Cast Iron
Color	Gray
Bore Type	Finished Bore
Coupling Type	S-Flex
Weight	11.10 lb

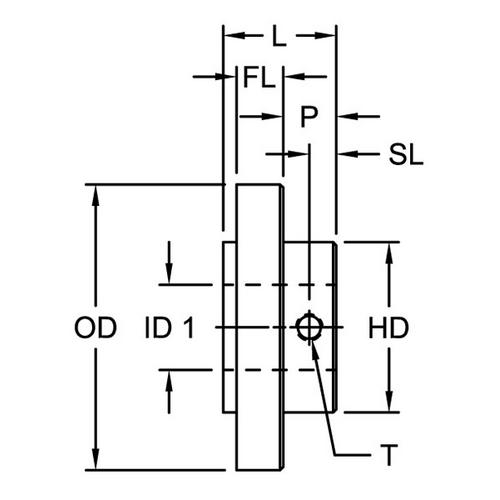

Dimensional Data
Bore Size	2-1/4 in
Thread (Dimension T)	1/2-13"
Keyway Size (W x D)	1/2 x 1/4 in
Outside Diameter	7.500 in (190.50 mm)
Max. Bore (Dimension ID)	2.750 in
Dimension FL	1.220 in (30.99 mm)
Dimension HD	4.380 in (111.25 mm)
Dimension L	2.700 in (68.58 mm)
Dimension P	0.810 in (20.57 mm)
Dimension SL	0.410 in (10.41 mm)
Cubic inches	9.56250 in3
Performance Data
Nominal Torque (with EPDM Sleeve)	2875 in-lb
Max. Speed	3600.00 rpm
Torsional Stiffness	10980.00 in-lb/rad
Rated HP at 100 rpm	4.60 hp
Rated HP at 1200 rpm	55.00 hp
Rated HP at 1800 rpm	82.00 hp
Rated HP at 3600 rpm	164.00 hp

Notes
