Lovejoy, 68514412660, RRS150 RRS-Type Spacer Assembly - Inch (Imperial) Spacing

Features:

1 Standard RRS Hub, 1 Standard RRSC Hub, & 1 Spacer Assembly (2 snap wrap siders w/o ring, 2 collars with screws, & 1 spacer).
Spacer length denotes separation between shaft ends.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Hub Style	2
Coupling Type	Jaw
Material	Buna-N
Insert Style	Wrap Type
Color	Metallic/Gray
Weight	6.04 lb

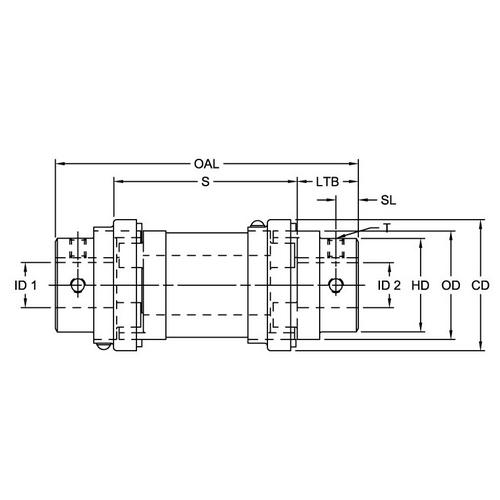

Dimensional Data
Height	4.440 in
Depth	3.50 in
Width	4.440 in
Cubic inches	68.99760 in³
Dimensional Data of Related Coupling
Coupling Size	RRS150
Thread (Dimension T)	3/8-16"
Outside Diameter	4.440 in 112.78 mm
Min. Bore (Dimensions ID1/ID2)	0.625 in 16.00 mm
Max. Bore (Dimensions ID1/ID2)	1.875 in 48.00 mm
Dimension CD	4.440 in 112.78 mm
Dimension CL	0.120 in 3.05 mm
Spacer Length (Dimension S)	3.500 in 88.90 mm
Dimension SL	0.620 in 15.75 mm
Performance Data of Related Coupling
Normal Temperature Range	-40 to 212 ºF
Nominal Torque	1240.00 in·lb

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).


Hub Style	2
Coupling Type	Jaw
Material	Buna-N
Insert Style	Wrap Type
Color	Metallic/Gray
Weight	6.04 lb
Dimensional Data
Height	4.440 in
Depth	3.50 in
Width	4.440 in
Cubic inches	68.99760 in³
Dimensional Data of Related Coupling
Coupling Size	RRS150
Thread (Dimension T)	3/8-16"
Outside Diameter	4.440 in 112.78 mm
Min. Bore (Dimensions ID1/ID2)	0.625 in 16.00 mm
Max. Bore (Dimensions ID1/ID2)	1.875 in 48.00 mm
Dimension CD	4.440 in 112.78 mm
Dimension CL	0.120 in 3.05 mm
Spacer Length (Dimension S)	3.500 in 88.90 mm
Dimension SL	0.620 in 15.75 mm
Performance Data of Related Coupling
Normal Temperature Range	-40 to 212 ºF
Nominal Torque	1240.00 in·lb

Note: Please read description carefully. Do not base your order on the picture presented.
