Options and Related Products

Insert Style:: Insert Style: Solid

Features:

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)
NBR standard shore hardness is 80A ±5A Except L035=60A.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details


Coupling Type	Jaw
Material	SOX (NBR) Rubber
Insert Style	Solid
Color	Black
Type	Elastomeric Insert
Weight	0.04 lb

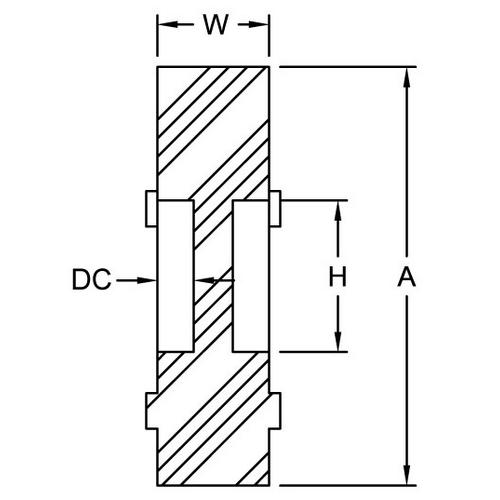

Dimensional Data
Coupling Size	L090, L095, AL090, AL095
Dimension A	2.120 in (53.85 mm)
Dimension B	0.360 in (9.14 mm)
Dimension DC	0.180 in (4.57 mm)
Dimension H	0.880 in (22.35 mm)
Dimension W	0.44 in (11.18 mm)
Cubic inches	1.97754 in3
Performance Data
Normal Temperature Range	-40 to 212 °F (-40 to 100 °C)
Nominal Torque	144 to 194 in-lb (16.3 to 21.9 N-m)
Angular Misalignment	1.00 °
Parallel Misalignment	0.150 in
Shore Hardness	80A
Damping Capacity	High
Chemical Resistance	Good

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details


Coupling Type	Jaw
Material	SOX (NBR) Rubber
Insert Style	Solid
Color	Black
Type	Elastomeric Insert
Weight	0.04 lb
Dimensional Data
Coupling Size	L090, L095, AL090, AL095
Dimension A	2.120 in (53.85 mm)
Dimension B	0.360 in (9.14 mm)
Dimension DC	0.180 in (4.57 mm)
Dimension H	0.880 in (22.35 mm)
Dimension W	0.44 in (11.18 mm)
Cubic inches	1.97754 in3
Performance Data
Normal Temperature Range	-40 to 212 °F (-40 to 100 °C)
Nominal Torque	144 to 194 in-lb (16.3 to 21.9 N-m)
Angular Misalignment	1.00 °
Parallel Misalignment	0.150 in
Shore Hardness	80A
Damping Capacity	High
Chemical Resistance	Good
