Buy Lovejoy 68514410637, AL075 Coupling Hub without Keyway, 9/16", (Pack of 9 pcs)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Package Quantity: Pack of 9 pcs

Options and Related Products

Bore Size:: Bore Size: 9/16"

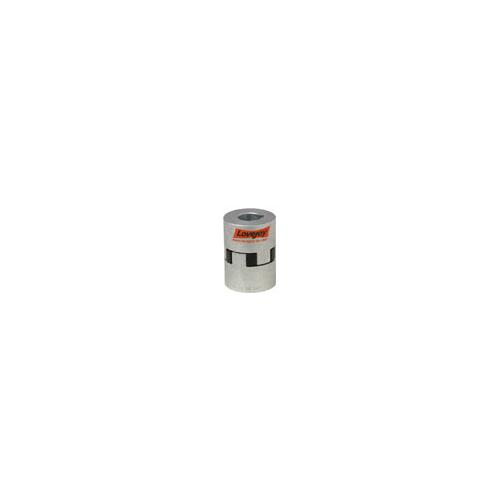

Lovejoy, 68514410637, AL075 Coupling Hub without Keyway, 9/16", AL Type, Imperial

Features:

Interchangeable with all hub sizes standard for the L-Line and AL-Line products
in a variety of different finished bore and keyway combinations
Finished bores passivated for additional rust protection

Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.) Lovejoy does not recommend reboring AL hubs. All hubs are supplied standard with one set screw, except the AL150 which is provided with two set screws.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Hub Style	2
Coupling Type	Jaw
Material	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	0.16 lb
Weight - Solid	0.30 lb
Weight - Solid	0.40 lb
Bore Size	9/16 in
Coupling Size	AL075
Thread (Dimension T)	1/4-20
Keyway Size (W x D)	No Keyway
Length thru Bore	0.810 in (20.57 mm)
Overall Length	2.12 in (53.85 mm)
Min. Bore (Dimensions ID1/ID2)	0.250 in (6 mm)
Max. Bore (Dimensions ID1/ID2)	0.875 in (22.00 mm)
Hub Length	1.310 in (33.27 mm)
Dimension G	0.5 in (12.7 mm)
Dimension HD	1.530 in (38.86 mm)
Dimension SL	0.31 in (7.87 mm)
Cubic inches	4.01188 in3
Nominal Torque	90.00 in-lb
Max. Speed	11000.00 rpm
Moment of Inertia (Solid) WR	0.121 lb-in2
Rated HP at 100 rpm	0.14 hp
Rated HP at 1,200 rpm	1.68 hp
Rated HP at 1,800 rpm	2.57 hp
Rated HP at 3,600 rpm	5.04 hp

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Hub Style	2
Coupling Type	Jaw
Material	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Weight	0.16 lb
Weight - Solid	0.30 lb
Weight - Solid	0.40 lb
Bore Size	9/16 in
Coupling Size	AL075
Thread (Dimension T)	1/4-20
Keyway Size (W x D)	No Keyway
Length thru Bore	0.810 in (20.57 mm)
Overall Length	2.12 in (53.85 mm)
Min. Bore (Dimensions ID1/ID2)	0.250 in (6 mm)
Max. Bore (Dimensions ID1/ID2)	0.875 in (22.00 mm)
Hub Length	1.310 in (33.27 mm)
Dimension G	0.5 in (12.7 mm)
Dimension HD	1.530 in (38.86 mm)
Dimension SL	0.31 in (7.87 mm)
Cubic inches	4.01188 in3
Nominal Torque	90.00 in-lb
Max. Speed	11000.00 rpm
Moment of Inertia (Solid) WR	0.121 lb-in2
Rated HP at 100 rpm	0.14 hp
Rated HP at 1,200 rpm	1.68 hp
Rated HP at 1,800 rpm	2.57 hp
Rated HP at 3,600 rpm	5.04 hp

Note

Note: Please read description carefully. Do not base your order on the picture presented.
