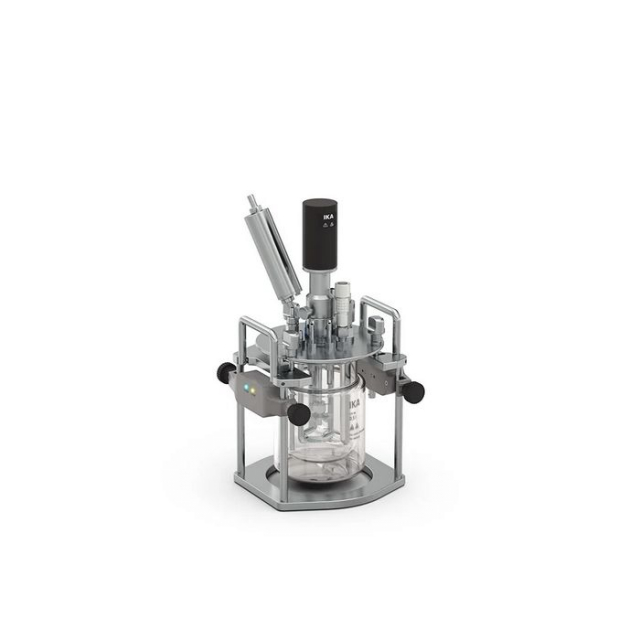

Ika 0010007655 HABITAT Ferment DW 0.5 Bioreactor

Volume (L): 0.5
  • Brand Ika
  • Part # 0010007655
  • Model # HABITAT Ferment DW 0.5
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Volume (L):
Volume (L): 0.5

0010007655 Includes Only:

  • Stand 0.5
  • HA.gv.dw.0.5 Glass vessel, double-wall
  • HA.mt.s.2 Motor, small
  • HA.hp.s.0.5 Harvest pipe, straight
  • HA.fd Feeding port (2 pcs.)
  • HA.ba.0.5 Baffle
  • HA.sp.r.0.5 Ring sparger, 0.5 mm
  • HA.cn Condenser
  • HA.ip.b.0.5 6-blade segment impeller
  • HA.s.tm.1 Temperature sensor
  • HA.s.ph.0.5 pH sensor
  • HA.s.do.0.5 DO sensor
  • HA.s.fo Foam sensor
  • HA.s.lv.1 Level sensor
  • HA.cab.dw Cable and tube set
  • HA.sf.250 Sample flask (4 pcs.)

Features:

  • The 0,5 l vessel package for the bioreactor HABITAT research contains a 0,5 l double-walled glass vessel for fermentation applications as well as the appropriate stirring drive.
  • For temperature control via the double jacket IKA recommend one of circulators such as the HRC basic or control.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ReactorFermenter
Volume0.5 l
Typedouble wall
Multi useyes
Autoclavableyes
Inner diameter90 mm
Ratio = height / inner diameter1.67
useable volume min.0.25 l
useable volume max.0.8 l
Reactor vessel materialborosilicate glass
Reactor lid materialstainless steel 1.4404
Net weight reactor vessel0.71 kg
Net weight reactor assembled6.77 kg
Number lid ports10
Lid ports (Baffle)1
Lid ports (pH)1
Lid ports (Reserve)0
Lid ports (Condenser)1
Lid ports (Cooling Finger)0
Lid ports (Inoculation)0
Lid ports (Harvest Pipe)1
Lid ports (Sparger)1
Lid ports (Feed)2
Lid ports (4in1)0
Lid ports (Temperature)1
Lid ports (DO)1
Lid ports (Level)1
Material in contact with mediumAISI 316L, borosilicate glass 3.3, silicone uSP class VI
Motor couplingshaft feedthrough
Harvest pipe outer diameter6 mm
Harvest pipe inner diameter4
Harvest pipe designstraight
Harvest pipe, height adjustableyes
Feeding port, outer diamter4.5 mm
Feeding port, inner diamter2 mm
Feeding port, amount4
SpargerRing sparger
Sparger, outer diameter8 mm
Sparger, inner diameter6 mm
Sparger pore size500 um
Stirrer designPropeller stirrer, 6-bladed
Stirrer diameter 6 blade impeller33 mm
Ratio = stirrerdiameter 6blade / inner diameter reactor0.37
Stirrer quantity1
Condenseryes
Condenser, connection threatM16x2
Type of coolingVertical condenser
Condenser Temperature min.5 °C
Temperature min. / Condenser with Peltier15 °C
Temperature min. / Condenser with water cooling5 °C
Filtertypesterile filter
FiltermaterialPTFE reinforced with PP
Filter housing materialPP
Pore size0.22 um
Filter heateryes
Spin filter40 um
BaffleAccessory
Temperature measuringyes
Working temperature sensorPT1000
pH sensoryes
pH sensor connection threatPG 13.5
pO2 sensoryes
pO2 sensor connection threatPG 13.5
Level sensorIKA HA.s.lv
Foam sensorIKA HA.s.fo
Turbidity sensorAccessory
Conductivity sensorAccessory
CO2 sensorAccessory
Speed max.1400 rpm
Dimensions (W x H x D)185 x 365 x 185 mm
Product Details
ReactorFermenter
Volume0.5 l
Typedouble wall
Multi useyes
Autoclavableyes
Inner diameter90 mm
Ratio = height / inner diameter1.67
useable volume min.0.25 l
useable volume max.0.8 l
Reactor vessel materialborosilicate glass
Reactor lid materialstainless steel 1.4404
Net weight reactor vessel0.71 kg
Net weight reactor assembled6.77 kg
Number lid ports10
Lid ports (Baffle)1
Lid ports (pH)1
Lid ports (Reserve)0
Lid ports (Condenser)1
Lid ports (Cooling Finger)0
Lid ports (Inoculation)0
Lid ports (Harvest Pipe)1
Lid ports (Sparger)1
Lid ports (Feed)2
Lid ports (4in1)0
Lid ports (Temperature)1
Lid ports (DO)1
Lid ports (Level)1
Material in contact with mediumAISI 316L, borosilicate glass 3.3, silicone uSP class VI
Motor couplingshaft feedthrough
Harvest pipe outer diameter6 mm
Harvest pipe inner diameter4
Harvest pipe designstraight
Harvest pipe, height adjustableyes
Feeding port, outer diamter4.5 mm
Feeding port, inner diamter2 mm
Feeding port, amount4
SpargerRing sparger
Sparger, outer diameter8 mm
Sparger, inner diameter6 mm
Sparger pore size500 um
Stirrer designPropeller stirrer, 6-bladed
Stirrer diameter 6 blade impeller33 mm
Ratio = stirrerdiameter 6blade / inner diameter reactor0.37
Stirrer quantity1
Condenseryes
Condenser, connection threatM16x2
Type of coolingVertical condenser
Condenser Temperature min.5 °C
Temperature min. / Condenser with Peltier15 °C
Temperature min. / Condenser with water cooling5 °C
Filtertypesterile filter
FiltermaterialPTFE reinforced with PP
Filter housing materialPP
Pore size0.22 um
Filter heateryes
Spin filter40 um
BaffleAccessory
Temperature measuringyes
Working temperature sensorPT1000
pH sensoryes
pH sensor connection threatPG 13.5
pO2 sensoryes
pO2 sensor connection threatPG 13.5
Level sensorIKA HA.s.lv
Foam sensorIKA HA.s.fo
Turbidity sensorAccessory
Conductivity sensorAccessory
CO2 sensorAccessory
Speed max.1400 rpm
Dimensions (W x H x D)185 x 365 x 185 mm
Note

Note: Please read description carefully. Do not base your order on the picture presented.
