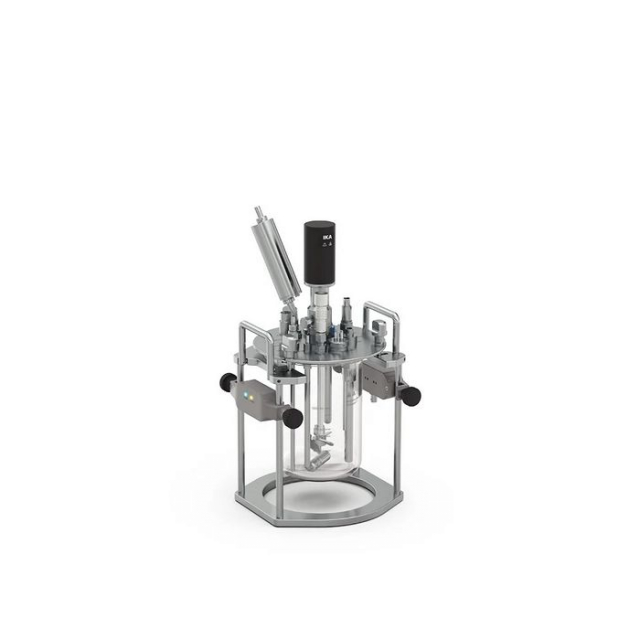

Buy Ika 0010007646, HABITAT Cell SW 1 Bioreactor

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Volume (L):: Volume (L): 1

0010007646 Includes Only:

Stand 1
HA.gv.sw.1 Glass vessel, single-wall
HA.mt.s.2 Motor, small
HA.hp.s.1 Harvest pipe, straight
HA.ino Port for inoculation
HA.sp.m.1 Micro sparger, 5 µm
HA.cn Condenser
HA.ip.pi.1 3-pitched blade impeller
HA.s.tm.1 Temperature sensor
HA.s.ph.1 pH sensor
HA.s.do.1 DO sensor
HA.s.fo Foam sensor
HA.s.lv.1 Level sensor
HA.hbl.1 Heating blanket
HA.cab.sw Cable and tube set
HA.sf.250 Sample flask (4 pcs.)

Features:

The 1 l vessel package for the bioreactor HABITAT research contains a 1 l single-walled glass vessel for cell culture applications as well as the appropriate stirring drive

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Reactor	Cell Growth
Volume	1 l
Type	single wall
Heating blanket	yes
Multi use	yes
Autoclavable	yes
Inner diameter	110 mm
Ratio = height / inner diameter	1.73
useable volume min.	0.3 l
useable volume max.	1.6 l
Reactor vessel material	borosilicate glass
Reactor lid material	stainless steel 1.4404
Net weight reactor vessel	0.92 kg
Net weight reactor assembled	7.87 kg
Number lid ports	12
Lid ports (Baffle)	1
Lid ports (pH)	1
Lid ports (Reserve)	2
Lid ports (Condenser)	1
Lid ports (Cooling Finger)	1
Lid ports (Inoculation)	1
Lid ports (Harvest Pipe)	1
Lid ports (Sparger)	1
Lid ports (Feed)	0
Lid ports (4in1)	1
Lid ports (Temperature)	1
Lid ports (DO)	1
Lid ports (Level)	1
Material in contact with medium	AISI 316L, borosilicate glass 3.3, silicone uSP class VI
Motor coupling	shaft feedthrough
Harvest pipe outer diameter	6 mm
Harvest pipe inner diameter	4
Harvest pipe design	straight
Harvest pipe, height adjustable	yes
Feeding port, outer diamter	4.5 mm
Feeding port, inner diamter	2 mm
Feeding port, amount	4
Inoculation port, outer diamter	6 mm
Inoculation port, inner diameter	4 mm
Sparger	Micro sparger
Sparger, outer diameter	8 mm
Sparger, inner diameter	6 mm
Sparger pore size	5 um
Stirrer design	Centrifugal stirrer, 2-bladed
Stirrer diameter 3 pitchblade	41 mm
Ratio = stirrerdiameter 3 blade / inner diameter reactor	0.37
Stirrer quantity	1
Condenser	yes
Condenser, connection threat	M16x2
Type of cooling	Vertical condenser
Condenser Temperature min.	5 °C
Temperature min. / Condenser with Peltier	15 °C
Temperature min. / Condenser with water cooling	5 °C
Filtertype	sterile filter
Filtermaterial	PTFE reinforced with PP
Filter housing material	PP
Pore size	0.22 um
Filter heater	yes
Spin filter	40 um
Baffle	Accessory
Temperature measuring	yes
Working temperature sensor	PT1000
pH sensor	yes
pH sensor connection threat	PG 13.5
pO2 sensor	yes
pO2 sensor connection threat	PG 13.5
Level sensor	IKA HA.s.lv
Foam sensor	IKA HA.s.fo
Turbidity sensor	Accessory
Conductivity sensor	Accessory
CO2 sensor	Accessory
Speed max.	2000 rpm
Dimensions (W x H x D)	210 x 415 x 210 mm

Product Details

Reactor	Cell Growth
Volume	1 l
Type	single wall
Heating blanket	yes
Multi use	yes
Autoclavable	yes
Inner diameter	110 mm
Ratio = height / inner diameter	1.73
useable volume min.	0.3 l
useable volume max.	1.6 l
Reactor vessel material	borosilicate glass
Reactor lid material	stainless steel 1.4404
Net weight reactor vessel	0.92 kg
Net weight reactor assembled	7.87 kg
Number lid ports	12
Lid ports (Baffle)	1
Lid ports (pH)	1
Lid ports (Reserve)	2
Lid ports (Condenser)	1
Lid ports (Cooling Finger)	1
Lid ports (Inoculation)	1
Lid ports (Harvest Pipe)	1
Lid ports (Sparger)	1
Lid ports (Feed)	0
Lid ports (4in1)	1
Lid ports (Temperature)	1
Lid ports (DO)	1
Lid ports (Level)	1
Material in contact with medium	AISI 316L, borosilicate glass 3.3, silicone uSP class VI
Motor coupling	shaft feedthrough
Harvest pipe outer diameter	6 mm
Harvest pipe inner diameter	4
Harvest pipe design	straight
Harvest pipe, height adjustable	yes
Feeding port, outer diamter	4.5 mm
Feeding port, inner diamter	2 mm
Feeding port, amount	4
Inoculation port, outer diamter	6 mm
Inoculation port, inner diameter	4 mm
Sparger	Micro sparger
Sparger, outer diameter	8 mm
Sparger, inner diameter	6 mm
Sparger pore size	5 um
Stirrer design	Centrifugal stirrer, 2-bladed
Stirrer diameter 3 pitchblade	41 mm
Ratio = stirrerdiameter 3 blade / inner diameter reactor	0.37
Stirrer quantity	1
Condenser	yes
Condenser, connection threat	M16x2
Type of cooling	Vertical condenser
Condenser Temperature min.	5 °C
Temperature min. / Condenser with Peltier	15 °C
Temperature min. / Condenser with water cooling	5 °C
Filtertype	sterile filter
Filtermaterial	PTFE reinforced with PP
Filter housing material	PP
Pore size	0.22 um
Filter heater	yes
Spin filter	40 um
Baffle	Accessory
Temperature measuring	yes
Working temperature sensor	PT1000
pH sensor	yes
pH sensor connection threat	PG 13.5
pO2 sensor	yes
pO2 sensor connection threat	PG 13.5
Level sensor	IKA HA.s.lv
Foam sensor	IKA HA.s.fo
Turbidity sensor	Accessory
Conductivity sensor	Accessory
CO2 sensor	Accessory
Speed max.	2000 rpm
Dimensions (W x H x D)	210 x 415 x 210 mm

Note

Note: Please read description carefully. Do not base your order on the picture presented.
