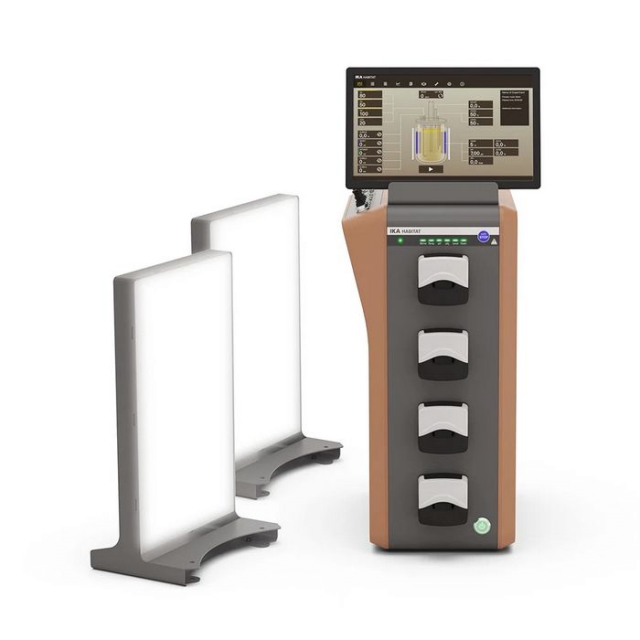

Ika 0010007596 HABITAT Photo Cell CCT Bioreactor Control Tower

0010007596 Includes Only:

• HABITAT photo cell cct S099
• Tablet with software for bioreactor
• HA.pl. Peltier cooling element
• LED panel (2pcs)

Features:

• The HABITAT photo cell cct control unit package of the HABITAT research bioreactor is used to monitor and control the bioprocess. With the help of the LED panels included in the scope of delivery, the system can be used as a photobioreactor, for example for algae cultivation
• The adjustment of the light intensity enables the simulation of the day-night rhythm. Furthermore, the package includes the control unit with all connection options for the gas supply, liquid addition, sensors and temperature control as well as a tablet for simple and clear operation of the bioreactor. In addition to the HABITAT cell package, you have the option of connecting CO2, conductivity and turbidity sensors.

Control and monitoring

The bioprocess and all associated test parameters can be easily controlled and monitored via the tablet attached to the control unit and with the help of the intuitive and easy-to-use software. Depending on the type of cultivation, you can choose between the operating modes batch, fed-batch and perfusion/continuous. The Chaotic Mixing function ensures faster and more effective mixing when required. The 10.4-inch tablet allows direct access to all actuators directly on the main screen. A clear calibration management, a diagram overview and the complete documentation of the process round off the operation.

Gas supply

Built in mass flow controllers for 4 separate gas lines (for N2, O2, air and CO2) ensure precise, individually adjustable gassing, ideally tailored to the needs of your cells. Flow rates of 0-2000 cc/min can be achieved.

Liquid supply

4 integrated Watson Marlow pumps, adjustable in direction and speed, give you the variability to pump in and pump out different liquids (like acid, base, anti-foam agent, feeding solutions).

Sensors

HABITAT cell enables the measurement of the following parameters by means of sensors:

• pH
• DO (dissolved oxygen)
• temperature
• filling level
• foam

Temperature control

The constant and precise temperature control during the cultivation is guaranteed by the heating sleeve, which is adapted to the respective vessel size. (Heating sleeve is included with the HABITAT cell vessel package).

All features at a glance

• compact, space-saving design, dimensions: 223 x 402 x 450 mm (WxDxH)
• large tablet for clear operation (10,4 inch)
• intuitive, easy-to-use software with a lot of functionalities.
• 4 integrated fast-load pumps (Watson Marlow)
• connectivity: uSB, PC, RS232, ethernet, external signal input, external pump, single-use unit, thermostat
• data storage
• gas supply with 4 built-in mass flow controllers: e.g. for O2, Luft, N2, CO2
• Status LED display: direct error display by indicator light
