Low profile to get you into tight spaces.
The B-CAP® Wire Connectors get you inside hard-to reach spots comfortably, especially when you’re retrofitting or updating. Slim, classic fins and an expanding interior spring give the Ideal BGR-B a firm and secure kind of grip with added leverage, making it the most compact connector available on the market for up to 5 #12.
The unique, space-saving profile of the BGR-B makes it perfect for retrofit work and shallow boxes.
The B-CAP series also features a tough, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands. Additionally, the Ideal BGR-B can be removed for repeat usage on the same size or larger wire combinations.
Installation Instructions
- Turn off power before removing or installing connectors.
- For use on solid copper wire only.
- Strip wires if insulated 1” (25 mm). Note: Through-wire must be stripped full length.
- Insert through-wire in connector first.
- Hold remaining wires together with ends even.
- Pre-twisting acceptable, but not required. Screw on connector – push wires firmly into connector when starting.
- Insert wires into connector and twist clockwise until tight.

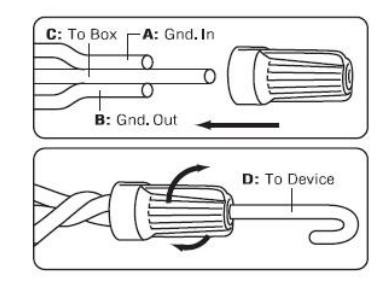

Typical Example:
- A. System grounding wire
- B. System grounding wire
- C. Through-wire to box ground
- D. Through-wire to device ground
Note: If through-wire is a jumper, be sure wire extends below skirt 6” minimum.
- Use only on Copper to Copper (Cu/Cu) wire combinations.
- For use in dry locations only.
- Temperature rating: 105°C (221°F) maximum.
- UL 486C Listed and CSA C22.2 #188 Certified.
- Complies with Federal Specific. W-S-61D
