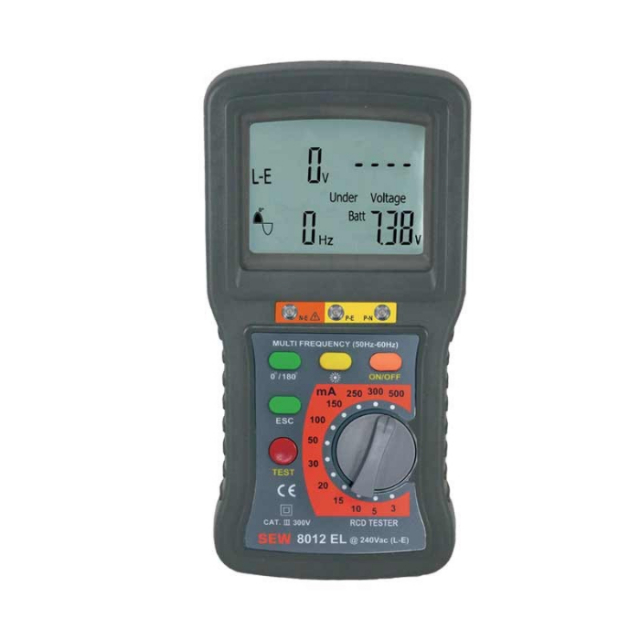

Buy Hoyt 8012 EL, Digital RCD Tester

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Buy in Bulk 4 Applicable Promotion(s)

Show All

Buy 5 pcs, get 4% off
Save 4% each on Hoyt 8012 EL Digital RCD Tester when you purchase 5 or more
Buy 4 pcs, get 3% off
Save 3% each on Hoyt 8012 EL Digital RCD Tester when you purchase 4 or more
Buy 3 pcs, get 2% off
Save 2% each on Hoyt 8012 EL Digital RCD Tester when you purchase 3 or more
Buy 2 pcs, get 1% off
Save 1% each on Hoyt 8012 EL Digital RCD Tester when you purchase 2 or more

Availability: Contact Us

Check Availability

Quantity

8012 EL Includes Only:

Instruction manual
Test leads
Carry case
Batteries
Hand strap

Features:

Microprocessor-controlled.
Extra-large LCD(78 x 67mm).
Very low consumption.
50Hz and 60Hz operation.
Menu-driven.
Accurate digital readout of disconnection time.
Over-temperature protection.
Overvoltage protection.
Fuse protection.
Zero crossing circuitry permit testing at 0° or 180°.
Auto power off.
Auto-off and off override.
Wiring polarity indicator.
Measure voltage between Line and Earth before testing.
Frequency measurement indication.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Operating Voltage ( L-E ) 50Hz or 60Hz

Version A: 240 Vac
Version B: 230 Vac
Version C: 220 Vac
Version D: 110 Vac

Current Settings

3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA, 100mA, 150mA, 250mA, 300mA, 500mA.

Current Selection

Rotary Switch Selector

Phase angle setting

0° and 180° selectable.

Wiring Correctness Indication

Yes (LEDs).

Trip Indicator

Yes (LCD).

Over-Temperature Protection

Yes.

Voltmeter (L-E)

20Vac - 280Vac | (50Hz or 60Hz)

Timer Resolution

1ms (Max Time = 2.999s).

Timer Accuracy

± 2ms.

Current Accuracy

± 5% ± 1mA.

Voltmeter Resolution

1Vac.

Voltmeter Accuracy

± 2% ±1Vac.

Operating Temperature

0°C - 40°C.

Storage Temperature

-10°C - 50°C.

Dimensions

221(L) x 110(W) x 57(D)mm.

Weight (battery included)

Approx. 695g.

Power source

1.5V (AA) x 6.

Safety Standard

EN 61010-1 CAT III 300V
EN 61326-1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Operating Voltage ( L-E ) 50Hz or 60Hz

Version A: 240 Vac
Version B: 230 Vac
Version C: 220 Vac
Version D: 110 Vac

Current Settings

3mA, 5mA, 10mA, 15mA, 20mA, 30mA, 50mA, 100mA, 150mA, 250mA, 300mA, 500mA.

Current Selection

Rotary Switch Selector

Phase angle setting

0° and 180° selectable.

Wiring Correctness Indication

Yes (LEDs).

Trip Indicator

Yes (LCD).

Over-Temperature Protection

Yes.

Voltmeter (L-E)

20Vac - 280Vac | (50Hz or 60Hz)

Timer Resolution

1ms (Max Time = 2.999s).

Timer Accuracy

± 2ms.

Current Accuracy

± 5% ± 1mA.

Voltmeter Resolution

1Vac.

Voltmeter Accuracy

± 2% ±1Vac.

Operating Temperature

0°C - 40°C.

Storage Temperature

-10°C - 50°C.

Dimensions

221(L) x 110(W) x 57(D)mm.

Weight (battery included)

Approx. 695g.

Power source

1.5V (AA) x 6.

Safety Standard

EN 61010-1 CAT III 300V
EN 61326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
