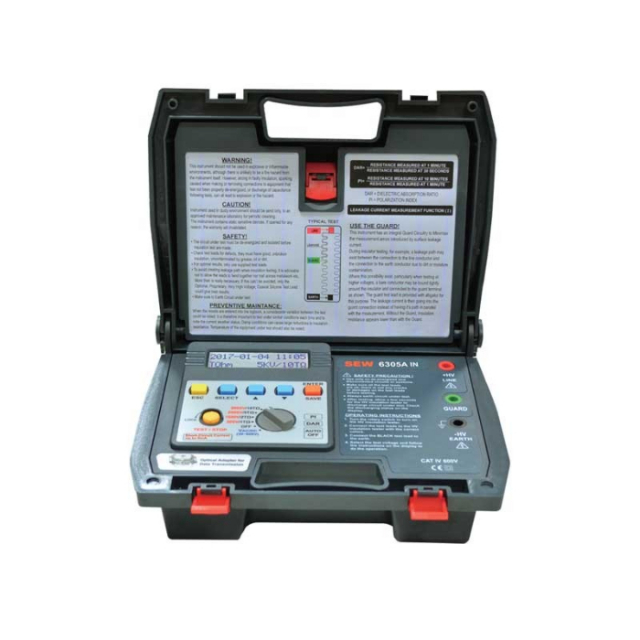

Hoyt 6305A IN Digital HV Insulation Tester

6305A IN Includes Only:

• Instruction manual,
• Test leads,
• Data transmission cable CA-232,
• Compact disk (CD) for PC interface,
• Alligator clips,
• Batteries,
• Test report.

Features:

• 2 Lines x 16 Characters LCD.
• Microprocessor-controlled.
• Tests insulation resistance up to 10 TΩ.
• 4 Insulation test voltages: 500V, 1000V, 2500V, 5000V.
• AC / DC Voltmeter (30~600V).
• Short-circuit current up to 5mA.
• PI (Polarization Index) indication.
• DAR (Dielectric Absorption Ratio) indication.
• Auto-ranging on all insulation ranges.
• Optical USB to RS-232 data transmission.
• Well isolated from contact.
• Well protected from surges.
• 2 built-in optical LEDs for data transfer.
• Visual and audio warning of external voltage presence (≥30Vac or ≥30Vdc).
• Auto-hold function to freeze reading.
• Overload protection.
• Adjustable testing duration: 1~30 minutes.
• Internal memory for data storage.
• Displays testing duration for insulation measurement.
• Auto-off function.
• 200 measurement results can be saved in memory and recalled on display.
