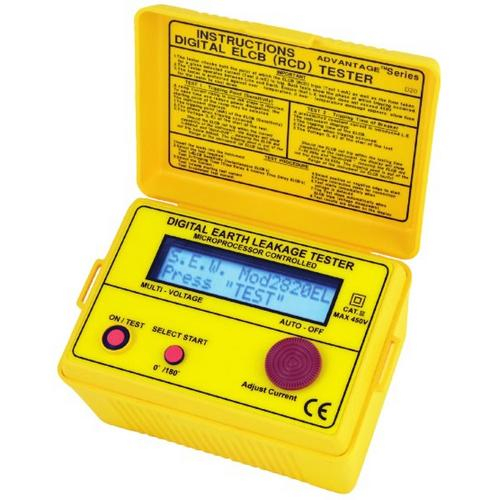

Buy Hoyt 2820EL, Digital ELCB Tester

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

Microprocessor-controlled
Operating voltage 100 - 450V L-E
Rated current 999 mA, at 317V AC / 50Hz
Checks ELCB trip time and trip point (sensitivity)
Auto-off and auto ranging
Phase angle selection (0° / 180°)
Indicates tripping phase angle
Impact resistant enclosure
Over temperature shut-down
Transient protection
Suitable for heavy industrial use
Fused

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Trip current-range

0-1A at 317V (Auto-Rang Programmable)

Trip current-resolution

1 mA

Operating voltage (L-E)

100 - 450V

Phase angle setting

0° and 180° selectable

Timer-max

99.999s

Timer resolution

1 ms

Typical Accuracy:

Trip-current

±1%rdg ± 1 mA

Trip-time

±1%rdg ± 1 dgt

Voltage

±3%rdg ± 1 dgt

Operating temperature / humidity

-10°C to +40°C 80% Max. relative humidity

Dimensions

170 (L) x 120 (W) x 95 (D) mm.

Weight (battery included)

Approx. 800 g

Power source

1.5 (AA) x 8

Safety standard

EN 61010-1 CAT III 450V
EN 610326-1

Product Details

Trip current-range

0-1A at 317V (Auto-Rang Programmable)

Trip current-resolution

1 mA

Operating voltage (L-E)

100 - 450V

Phase angle setting

0° and 180° selectable

Timer-max

99.999s

Timer resolution

1 ms

Typical Accuracy:

Trip-current

±1%rdg ± 1 mA

Trip-time

±1%rdg ± 1 dgt

Voltage

±3%rdg ± 1 dgt

Operating temperature / humidity

-10°C to +40°C 80% Max. relative humidity

Dimensions

170 (L) x 120 (W) x 95 (D) mm.

Weight (battery included)

Approx. 800 g

Power source

1.5 (AA) x 8

Safety standard

EN 61010-1 CAT III 450V
EN 610326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
