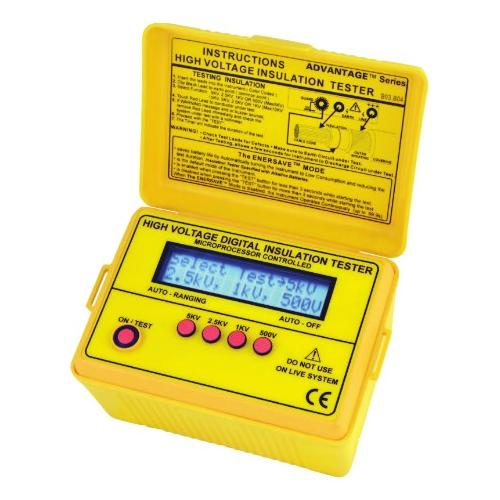

Buy Hoyt 2803IN, Digital High Voltage Insulation Tester - Mega Depot

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Voltage:: Voltage: 0.5kV / 1kV / 2.5kV / 5kV

Features:

Microprocessor-controlled
Four insulation test voltages
Insulation resistance; auto ranging on all ranges
Barograph indicates test voltage, rise and decay can be observed during tests
Visual and audible warning if external voltage is present
EnerSave feature to extend battery life
2 Lines x 16 Characters large LCD
Low battery consumption
Low battery indicator
Overload protection
Auto-off
Show test time duration (up to 99.9s) for easy comparison
EEPROM calibration
Built-in carry case and test leads in separate pouch

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Test voltage (DC V)

0.5kV / 1kV / 2.5kV / 5kV

Measuring ranges (Auto ranging)

0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ

Accuracy

0-50GΩ: ±3% rdg / 50-250GΩ: ±5% rdg

Dimensions

170 (L) x 120 (W) x 95 (D) mm.

Weight (battery included)

Approx. 930 g

Power source

1.5V (AA) x 8

Safety standard

EN 61010-1
EN 61326-1

Product Details

Test voltage (DC V)

0.5kV / 1kV / 2.5kV / 5kV

Measuring ranges (Auto ranging)

0-25GΩ / 0-50GΩ / 0-125GΩ / 0-250GΩ

Accuracy

0-50GΩ: ±3% rdg / 50-250GΩ: ±5% rdg

Dimensions

170 (L) x 120 (W) x 95 (D) mm.

Weight (battery included)

Approx. 930 g

Power source

1.5V (AA) x 8

Safety standard

EN 61010-1
EN 61326-1

Note: Please read description carefully. Do not base your order on the picture presented.
