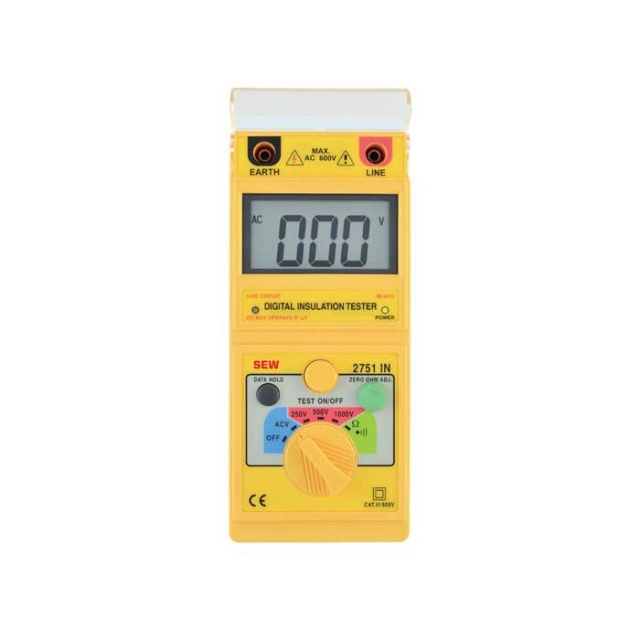

Buy Hoyt 2751 IN, Digital Insulation Tester

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Buy in Bulk 4 Applicable Promotion(s)

Show All

Buy 5 pcs, get 4% off
Save 4% each on Hoyt 2751 IN Digital Insulation Tester when you purchase 5 or more
Buy 4 pcs, get 3% off
Save 3% each on Hoyt 2751 IN Digital Insulation Tester when you purchase 4 or more
Buy 3 pcs, get 2% off
Save 2% each on Hoyt 2751 IN Digital Insulation Tester when you purchase 3 or more
Buy 2 pcs, get 1% off
Save 1% each on Hoyt 2751 IN Digital Insulation Tester when you purchase 2 or more

Availability: Contact Us

Check Availability

Quantity

2751 IN Includes Only:

Instruction manual
Test leads
Carry case
Batteries

Features:

Timer for test function (count 3-5 minutes).
Three insulation test voltages(DC V): 250V, 500V, 1000V.
3-1/2 digital LCD (2000 counts).
68 x 34mm (2.677" x 1.338") large LCD display.
Automatic circuit discharge.
Test insulation at rated voltage into a 1mA load.
200mA short circuit testing current for continuity.
External voltage warning indication.
Fuse protection.
Data hold function
Auto power-off function.
BS 16 edition.

Fuse protected Digital Insulation Tester with timer for test function (count 3-5 minutes).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Test voltage (DC V)

250V / 500V / 1000V

Measuring ranges (Auto-ranging)

0-20MOhm / 0-200MOhm / 0-2000MOhm

Output voltage on open circuit

Rated test voltage +10%

Output current

1mA DC

Power consumption

250mA

Accuracy

0-20MOhm: ±(1.5%rdg +5dgt),
0-200MOhm: ±(2.5%rdg +3dgt)
0-2000MOhm: ±(5%rdg +5dgt)

Measuring range

0-20Ohm / 0-200Ohm / 0-2000Ohm

Accuracy

± 1.5% of scale length

Resolution

0.01Ohm / 0.1Ohm / 1Ohm

Buzzer sound below

under 10Ohm

Open circuit terminal voltage

4V DC min

Short circuit terminal current

200mA DC min

Power consumption

300mA max

Range

0-600V

Resolution

Line frequency range

40-120 Hz

Accuracy

±(1.5%rdg +3dgt)

Display

3-1/2 digit (2000 counts)

Dimensions

205(L) x 90(W) x 55(D)mm

Weight (battery included)

Approx. 550g

Power source

1.5V (AA) x 6

Safety Standard

EN 61010-1 CAT III 600V EN 61326-1

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Test voltage (DC V)

250V / 500V / 1000V

Measuring ranges (Auto-ranging)

0-20MOhm / 0-200MOhm / 0-2000MOhm

Output voltage on open circuit

Rated test voltage +10%

Output current

1mA DC

Power consumption

250mA

Accuracy

0-20MOhm: ±(1.5%rdg +5dgt),
0-200MOhm: ±(2.5%rdg +3dgt)
0-2000MOhm: ±(5%rdg +5dgt)

Measuring range

0-20Ohm / 0-200Ohm / 0-2000Ohm

Accuracy

± 1.5% of scale length

Resolution

0.01Ohm / 0.1Ohm / 1Ohm

Buzzer sound below

under 10Ohm

Open circuit terminal voltage

4V DC min

Short circuit terminal current

200mA DC min

Power consumption

300mA max

Range

0-600V

Resolution

Line frequency range

40-120 Hz

Accuracy

±(1.5%rdg +3dgt)

Display

3-1/2 digit (2000 counts)

Dimensions

205(L) x 90(W) x 55(D)mm

Weight (battery included)

Approx. 550g

Power source

1.5V (AA) x 6

Safety Standard

EN 61010-1 CAT III 600V EN 61326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
