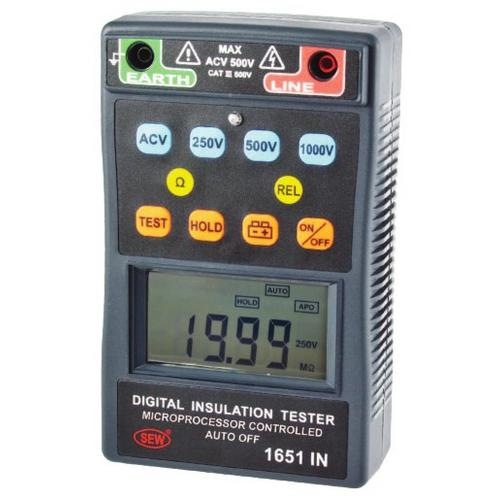

Buy Hoyt 1651IN, Digital Insulation Tester

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

List Price
$466.00
- Sale Price
  $403.00 Each

Buy in Bulk 4 Applicable Promotion(s)

Show All

Buy 5 pcs, get 4% off
Save 4% each on Hoyt 1651IN Digital Insulation Tester when you purchase 5 or more
Buy 4 pcs, get 3% off
Save 3% each on Hoyt 1651IN Digital Insulation Tester when you purchase 4 or more
Buy 3 pcs, get 2% off
Save 2% each on Hoyt 1651IN Digital Insulation Tester when you purchase 3 or more
Buy 2 pcs, get 1% off
Save 1% each on Hoyt 1651IN Digital Insulation Tester when you purchase 2 or more

Availability: 3-4 Weeks Factory Lead Time

Check Availability

Quantity

Options and Related Products

Type:: Type: Digital

Features:

Microprocessor-controlled
68 x 34 mm. large LCD display
3-1/2 digital LCD (2000 counts) a LCD indicated instrument for insulation (MΩ), continuity (Ω) and AC voltage
Three insulation test voltages(DC V) : 250V, 500V, 1000V
Auto ranging
Auto power off function
Auto data hold function
Rel function (ohm only)
Continuity buzzer
External AC voltage warning
Automatic circuit discharge
Test insulation at rated voltage into a 1 mA DC load
> 200 mA resistance tests short circuit test current
BS 16th edition

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Insulation Resistance:

Test voltage

250V / 500V / 1000V

Measuring ranges (Auto ranging)

0-20.00MΩ
0-200.0MΩ
0-2000MΩ

Output voltage open circuit

Rated test voltage +10%

Accuracy

20MΩ : ±(1.5%+2dgt)
200MΩ : ±(2.5%+2dgt)
2000MΩ : ±(5%+3dgt)

Resolution

0-20.00MΩ : 10kΩ
0-200.0MΩ : 100kΩ
0-2000MΩ : 1MΩ

Output current

1 mA DC

AC Voltage:

Range

0-500V

Resolution

Accuracy

±(1.5%rdg+3dgt)

Continuity:

Range

20Ω / 200Ω / 2000Ω

Resolution

0-20Ω : 0.01Ω
0-200Ω : 0.1Ω
0-2000Ω : 1Ω

Short circuit terminal current

> 200 mA DC

Accuracy

20Ω : ±(2%+4dgt)
200Ω : ±(1.5%+2dgt)
2000Ω : ±(1.5%+2dgt)

Buzzer sounds

Below 10Ω

General:

Dimensions

163 (L) x 102 (W) x 50 (D) mm.

Weight (battery included)

Approx. 470 g.

Power source

1.5V (AA ) x 6

Safety standard

EN 61010-1 CAT. III 500V
IEC 61557-1 IEC 61557-2
EN 61326-1

Product Details

Insulation Resistance:

Test voltage

250V / 500V / 1000V

Measuring ranges (Auto ranging)

0-20.00MΩ
0-200.0MΩ
0-2000MΩ

Output voltage open circuit

Rated test voltage +10%

Accuracy

20MΩ : ±(1.5%+2dgt)
200MΩ : ±(2.5%+2dgt)
2000MΩ : ±(5%+3dgt)

Resolution

0-20.00MΩ : 10kΩ
0-200.0MΩ : 100kΩ
0-2000MΩ : 1MΩ

Output current

1 mA DC

AC Voltage:

Range

0-500V

Resolution

Accuracy

±(1.5%rdg+3dgt)

Continuity:

Range

20Ω / 200Ω / 2000Ω

Resolution

0-20Ω : 0.01Ω
0-200Ω : 0.1Ω
0-2000Ω : 1Ω

Short circuit terminal current

> 200 mA DC

Accuracy

20Ω : ±(2%+4dgt)
200Ω : ±(1.5%+2dgt)
2000Ω : ±(1.5%+2dgt)

Buzzer sounds

Below 10Ω

General:

Dimensions

163 (L) x 102 (W) x 50 (D) mm.

Weight (battery included)

Approx. 470 g.

Power source

1.5V (AA ) x 6

Safety standard

EN 61010-1 CAT. III 500V
IEC 61557-1 IEC 61557-2
EN 61326-1

Note

Note: Please read description carefully. Do not base your order on the picture presented.
