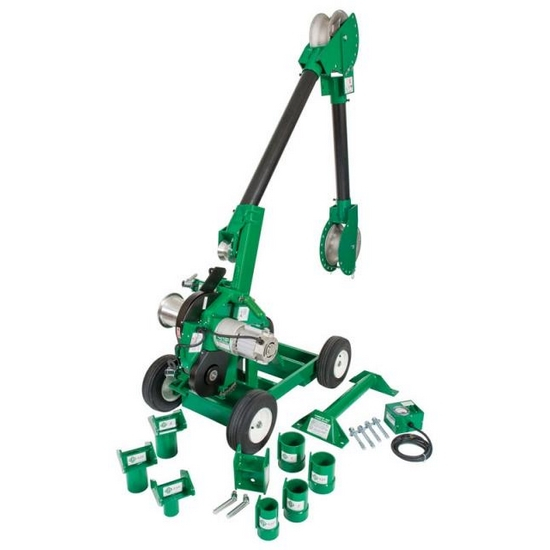

Greenlee, 56359, 6005 Super Tugger Complete Cable Puller Package with 3' Boom Tube and Elbow Unit

Includes

Features

Pull up to 6,500lbs. (28.9 kN) with less than 27lbs. (120 N) of operator effort
Unique floor mounting attachment for quick, reliable setup
Leaf-type mounting chains won't twist when tightening
Heat-treated steel serrated gripper feet for secure mounting to conduit
Force Gauge included to constantly monitor the pull
Right-angle sheave allows the operator to stand out of the direct line of force
Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan
Patented

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Drive Motor	1-1/2 hp, 120 VAC, 16 Hz, 20 Amp
Pulling Force	6500.000lb (28.900 KN) Maximum, 4500.000lb (20.000 KN) Continuous
Pulling Rope	3/4" (19.100mm) Double-Braided Composite, Rated At 26000LB (115.600 KN)
Pulling Speeds	16.5ftPM At No Load, (8.800 KN) - 11 (3.4) At 2000lb, (17.900 KN) - 7.5 (2.3) At 4000lb, (26.700 KN) - 6 (1.8) At 6000lb

Drive Motor	1-1/2 hp, 120 VAC, 16 Hz, 20 Amp
Pulling Force	6500.000lb (28.900 KN) Maximum, 4500.000lb (20.000 KN) Continuous
Pulling Rope	3/4" (19.100mm) Double-Braided Composite, Rated At 26000LB (115.600 KN)
Pulling Speeds	16.5ftPM At No Load, (8.800 KN) - 11 (3.4) At 2000lb, (17.900 KN) - 7.5 (2.3) At 4000lb, (26.700 KN) - 6 (1.8) At 6000lb

Note: Please read description carefully. Do not base your order on the picture presented.
