Greenlee 02720 CLM-1000E Metric Cable Length Meter

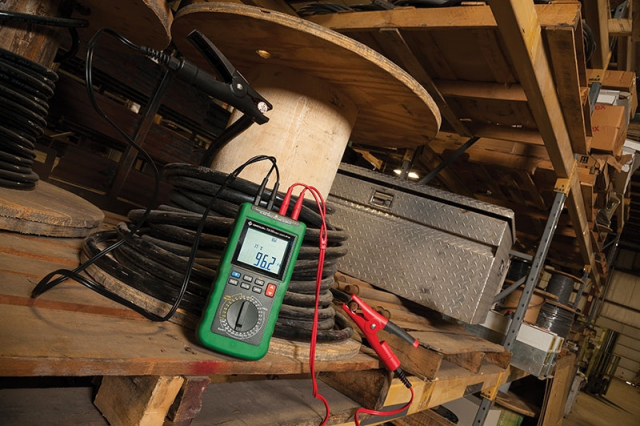

The Greenlee CLM-1000 and CLM-1000E Cable Length Meters are hand-held testing devices with the following measurement capabilities: resistance, temperature, and length. They can be used as μΩ meters to measure precise bonding resistances. The primary function of these meters is to calculate the length of cable based upon its material, temperature, and cable gauge. Cable material type can be either uncoated copper or aluminum. There are 20 pre-programmed and eight programmable cable gauges. (There are no strands per cable specification for the eight programmable switch positions.)

Features

• Measures length of cable without removing it from spool, counting turns or weighing spool
• Push button selections of copper or aluminum cable
• Measures cable length from 15 ft. to 100 ft.
• Measures resistant values down to 199.99Ω
• CLM-1000E measures the following metric wire sizes: 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185 240, 300, 400, 500 mm2
• Eight user-programmable settings for other gauges
• Powered by (6) 1.5V AA batteries
• Lifetime Limited Warranty

Application: Use to measure the length of insulated copper or aluminum conductors on a spool, and to measure low resistance values.
