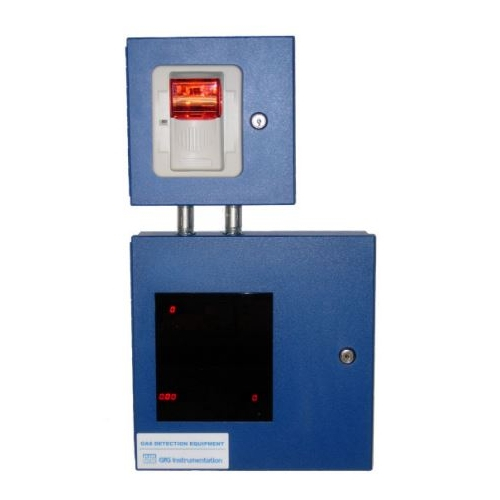

GfG Instrumentation 4000-1444 13 Channel Control Panel

13 Channel Control Panel

Features:

• Complete controller package available in four channels configurations
• Intuitive push button operation
• 4-20 mA input standard (factory configurable to 0.2-1 mA)
• Three user adjustable alarm points
• User adjustable alarm hysteresis
• Rugged metal housing
• Easy installation
• 4 relays (3 alarm and 1 fault)
• Factory configured alarm functions include:Latching/non-latching, Resettable/non-resettable, Time delay, Rapid rise alarm for combustible setups
• Local display, horn and strobe
• Additional box adds 11" to height

Each alarm can be adjusted separately. False alarms are eliminated with the adjustable alarm delay. The alarm point values can be freely adjusted within the detection range of the transmitter. Every alarm point value can be selected to be latching / non-latching or resettable / non resettable.

The 4400 control panel offers the ability to connect up to 4 transmitters and comes standard with an additional 24 VAC output for solenoid control.

The controller provides four voltage-free relays for the three alarms in addition to one fault warning. The relays may be used to control additional alarm devices like lights or horns. They can even prompt specific counter measures to prevent or limit dangers from gases or vapors
