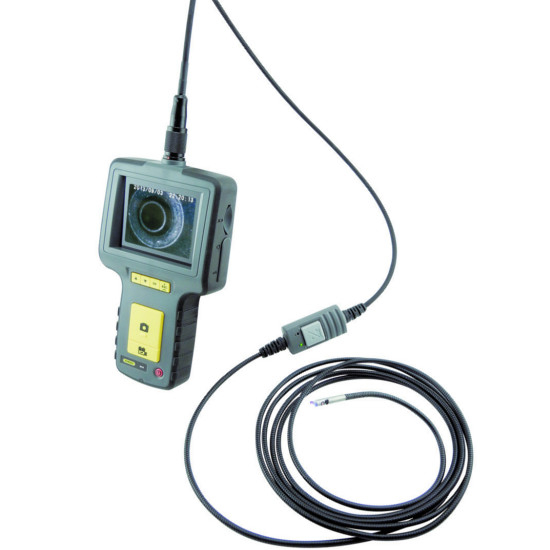

The #H16 DCS1600 Recording Console is the centerpiece of a recording video inspection system/borescope that you configure on an "a la carte" basis.

Includes

Applications

Features

Add any QVGA (320 x 240 pixel) or VGA (640 x 480 pixel) resolution probe from General to configure a video inspection system to your exact requirements. Optional probes include: high-performance articulating and non-articulating probes of three different
All optional probes feature at least four adjustable-brightness white LEDs and an IP67 water/oil/dust protection rating
3.5 in. (89mm) diagonal color LCD
Records VGA resolution (640 x 480 pixel) video clips and still images onto a standard-size SD memory card of up to 32GB capacity (8GB card included)
2X zoom and horizontal mirroring controls
Multiple language menu
TV monitor and USB computer interfaces
Rechargeable internal battery

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Display Type	Color TFT LCD
Display Size	3.5 in (89mm) diagonal
Display Resolution	320 by 240 pixels (QVGA)
Video Recording Resolution	320 x 240 pixels (QVGA)
Video File Format	.AVI
Photo Recording Resolution	640 x 480 pixels (VGA)
Photo File Format	.jpg
Video Out Formats	NTSC, PAL
Video Frame Rate	30 fps
Compression Format	Compatible with MPEG4
Signal-to-Noise Ratio	42dB or greater
Recording Medium	Standard-size SD card
Interfaces	AV out, USB 2.0
Languages	English, French, German, Italian, Spanish, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Danish, Dutch, Polish, Russian, Bulgarian, Turkish, Swedish, Finnish, Norwegian, Estonian, Lithuanian, Latvian, Hungarian, Czech, Slovak, Slovenian, Romanian, Greek
Power Source	Rechargeable 3.7V Li-ion battery
Power Consumption	1.8A @ 5.5V DC
Operating Temperature	-4° to 140°F (-20° to 60°C)
Storage Temperature	-4° to 140°F (-20° to 60°C)
Recharge Temperature	32° to 104°F (0° to 40°C)
Console Dimensions	8.5 x 4.7x 1.4 in. (215 x 120 x 36mm)
Console Weight	13.4 oz (380g)
