General Tools, DCS1600HP, Recording Video Inspection Camera/Borescope with High-Performance Probe

The DCS1600HP Video Inspection Camera/Borescope with High-Performance Probe is ideal for making high-quality video and photo inspections of inaccessible or hard-to-see areas of vehicles, environments and industrial equipment.

Features:

Combines H16 console of DCS1600 Recording Video Inspection System with 1m (3.3 ft.) long P16181HP High-Performance Probe. High-performance probe is also available separately in three lengths as a plug-and- play upgrade of probe supplied with discontinued DCS1600 systems
Consolr records VGA resolution (640 x 480 pixel) video clips and still images
P16181HP high-performance probe captures VGA resoluion video and Features light boost, anti-reflection and 90 image rotation buttons on handle
Camera lighting provided by four front-facing LEDs; to minimize glare from shiny targets, lighting can be shifted to two angled LEDs
3.5 in. diagonal color LCD on console for viewing probe video in real time and saved video and pictures later
Console is compatible with dozens of high-performance camera-tipped probes from General
Thumbwheel for adjusting brightness of camera lighting
Familiar menu-driven user interface for viewing and recording videos and photos on standard SD memory card (8GB card included) and playing back media on console, TV or PC
Rechargeable battery with 4-hour capacity

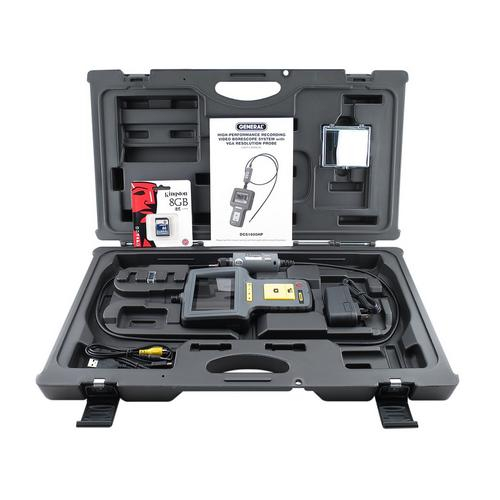

Includes:

H16 console of DCS1600 Recording Video Inspection System
P16181HP probe
110 mirrored probe viewing tip
8GB SD memory card
AC2 AC adaptor/charger
RCA and USB cables
1-year limited warranty

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories

Reviews

H16 CONSOLE:
Display:	3.5 in. (89mm) diagonal TFT color LCD
Recording Resolution:	320 by 240 pixels (QVGA)
Recording Resolution:	640 x 480 pixels (VGA)
Analog video out formats:	NTSC and PAL 2X zoom and horizontal mirroring controls on front panel
Languages supported:	English, German, French, Spanish, Japanese, Italian, Traditional Chinese, Simplified Chinese
Recording Medium:	Standard-size SD card (8GB card included)
Operating Temperature:	32 to 140F (0 to 60C)
Weight:	13.4 oz. (380g)
Power Source:	Rechargeable 3.7V Li-ion battery
P16181HP PROBE:
Camera Resolution:	640 x 480 pixels (VGA)
Camera Depth of Field:	0.25 in. to 12 in. (6.4 to 300mm)
Probe Length/Diameter:	1m (3.3 ft.)/5.5mm (0.22 in.)
Weight:	7.76 oz. (220g)
Dimensions:	8.5 x 4.7x 1.4 in. (215 x 120 x 36mm) for console

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

H16 CONSOLE:
Display:	3.5 in. (89mm) diagonal TFT color LCD
Recording Resolution:	320 by 240 pixels (QVGA)
Recording Resolution:	640 x 480 pixels (VGA)
Analog video out formats:	NTSC and PAL 2X zoom and horizontal mirroring controls on front panel
Languages supported:	English, German, French, Spanish, Japanese, Italian, Traditional Chinese, Simplified Chinese
Recording Medium:	Standard-size SD card (8GB card included)
Operating Temperature:	32 to 140F (0 to 60C)
Weight:	13.4 oz. (380g)
Power Source:	Rechargeable 3.7V Li-ion battery
P16181HP PROBE:
Camera Resolution:	640 x 480 pixels (VGA)
Camera Depth of Field:	0.25 in. to 12 in. (6.4 to 300mm)
Probe Length/Diameter:	1m (3.3 ft.)/5.5mm (0.22 in.)
Weight:	7.76 oz. (220g)
Dimensions:	8.5 x 4.7x 1.4 in. (215 x 120 x 36mm) for console
