Flowline LV55-S001 FloaTek 2" NPT PP Float Level Transmitter

FloaTek 2" NPT PP Float Level Transmitter

Features:

• High pressure or temperature level measurement upto 6.5' (2m).
• Rugged 316 stainless steel float guide and processmounting plug.
• Assembled to your guide length and measurementspan dimensions.

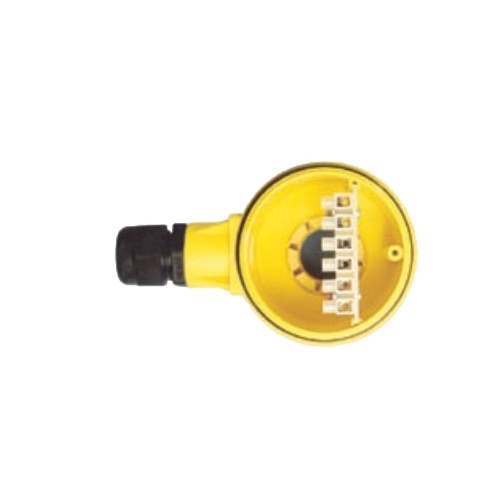

• Polypropylene junction box rated NEMA 4X with conduitport and terminal strip.

Application:

The general purpose float level transmitter providescontinuous level measurement up to 6.5' (2m) with a4-20 mA signal output, and is factory configured toyour selected dimension. This stainless steel liquidlevel sensor is well suited for high temperature orpressure tank level applications with relatively cleanliquids such as water, diluted chemicals and lightweight oils. Application examples include boilers andprocess vessels.

Key Benefits:

• Great for high pressure applications up to200 PSI.
• Use in applications with foam or turbulence.
• Loop powered output will interface directlywith PLC/SCADA or local display.
