Thermo-Flo Short Liquid Flow Switch, 3/4" NPT

Offered in liquid and gas sensor types, the general purpose flow switch provides reliable low or no-flow detection of relatively clean, non-coating media with one 1A relay output. Liquid examples include water and acetic acid. The short flow sensor is used in pipe or ducting from 1/2" to 1 1/2". The flow switch set point may be adjusted from 0.04 to 3 fps in liquids, or 1 to 90 fps in gases as a low-flow alarm. The flow sensor is best applied in applications with relatively constant temperature.

Features:

Rugged Polypropylene-Ryton® sensor for corrosive liquids and gases
Adjustable set point with LED for flow or no-flow status indication
60VA relay selectable NO or NC via power supply wiring polarity

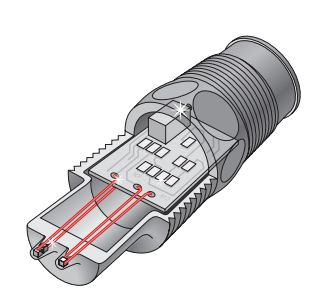

Solid state sensor is not damaged by over-ranging flow velocities
Ideal for monitoring chemical feed pumps
Use to monitor flow/no-flow conditions

Applications:

Chlorine Dioxide Water Flow Detection
Emergency Eye Wash Flow Detection

Compatible Products:

LC8X Thermo-Flo™ Remote Level Controller
LC30 Thermo-Flo™ Compact Level Controller

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Set point range	0.04 to 3fps (0.012 to 0.91 mps)
Factory set point	2 fps (.06 mps)
Repeatability	± 0.5% of set point @ fixed temperature
Response time	1-10 seconds
Set point adjust.	Potentiometer
Viscosity range	FT10: 1-200 centipoise
LED indication	Flow status
Supply voltage	14-36 VDC
Consumption	70 mA maximum
Contact type	(1) SPST relay
Contact rating	60 VA, 1A maximum
Contact output	Selectable NO / NC
Process temp.	F: 32° to 140° C: 0° to 60°
Ambient temp.	F: -40° to 140° C: -40° to 60°
Pressure	150 psi (10 bar) @ 25° C, derated @ 1.667psi (0.113 bar) per°C above 25° C
Sensor rating	NEMA 4X (IP65)
Wetted material	-1XX5: PP-Ryton® -5XX5: PVDF
Cable jack. mat.	-1XX5: PP -5XX5: PFA

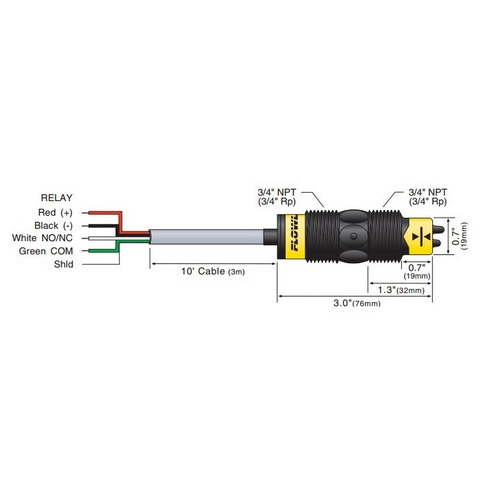

Cable type	4-conductor, shielded #22 AWG
Cable length	10' (3m)
Process mount	3/4" NPT (3/4" G)
Mount, gasket	Viton®
Classification	General purpose
Compliance	CE

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Set point range	0.04 to 3fps (0.012 to 0.91 mps)
Factory set point	2 fps (.06 mps)
Repeatability	± 0.5% of set point @ fixed temperature
Response time	1-10 seconds
Set point adjust.	Potentiometer
Viscosity range	FT10: 1-200 centipoise
LED indication	Flow status
Supply voltage	14-36 VDC
Consumption	70 mA maximum
Contact type	(1) SPST relay
Contact rating	60 VA, 1A maximum
Contact output	Selectable NO / NC
Process temp.	F: 32° to 140° C: 0° to 60°
Ambient temp.	F: -40° to 140° C: -40° to 60°
Pressure	150 psi (10 bar) @ 25° C, derated @ 1.667psi (0.113 bar) per°C above 25° C
Sensor rating	NEMA 4X (IP65)
Wetted material	-1XX5: PP-Ryton® -5XX5: PVDF
Cable jack. mat.	-1XX5: PP -5XX5: PFA
Cable type	4-conductor, shielded #22 AWG
Cable length	10' (3m)
Process mount	3/4" NPT (3/4" G)
Mount, gasket	Viton®
Classification	General purpose
Compliance	CE
