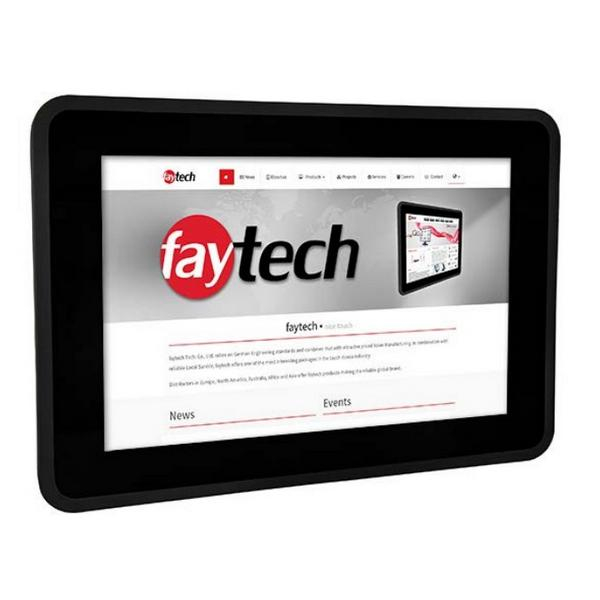

Buy Faytech FT101V40M400W1G8GCAP, 10.1" Embedded Touch PC, 1 GB RAM, 8 GB

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Screen Size:: Screen Size: 10.1"

FT101V40M400W1G8GCAP Includes Only:

Power Supply
W-LAN Antenna
Standard Stand
Short Installation Manual

The standard version with W-LAN. This is faytechs most cost effective yet powerful Quadcore solution for Android based platforms. Powered by the powerful Embedded V40 Mainboard, faytechs Embedded Touch PCs are the best solutions to industrial automation, device control and digital signage. The touch features capacitive 10-finger multitouch panels, Anti-glare chemical etched treatment and optionally bonded to the LED backlighting panels.

Features with all optional accessories:

10-Finger-Multi Touch Capacitive Touch Panel
Patented IP65 front with silicon seal
VESA 100 Mounting

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

LCD Panel

IP Rating IP65 Front / IP40 Back
Screen diagonal (Inch/cm) 10.1/25.65
Display active screen size (cm) 21.70x13.60
Aspect ratio 16:10
Physical resolution 1280x800
External Maximum showable resolution 1920x1080
Colours displayed 16.7M
Brightness (cd/m2) 350
Contrast 700:1
Typical reaction time Tr/ Tf (ms) 10/15
Visual Angle horizontal/vertical (°) 170/170
Backlight / Backlight Lifetime (hours) LED / 20000

PC System

CPU Allwinner V40 QuadCore
Chipset Cortex A7
Graphic GPU ARM Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Memory 1x 1GB DDR3
Storage 8GB EMMC Flash
Network 10M/100M Network; W-LAN
OS Android 6.0

Touch Panel

Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H

Operation / Mechanical

Operating Temperature (°C) -10 - 60
Humidity Range (RH) 10% - 90%
Net weight (kg) 2.00
Gross weight (kg) 2.90 (incl. carton)
Housing material Rubber Front Case, Plastic Back Case
Housing (cm) L x W x H 27.60 x 19.20 x 3.35
Mounting VESA 100

Power

Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 8 - 18
Power Consumption (W) 11
Stand-By Consumption (W) <1

External Connectors

1x 8-18V DC-In (screwable)
2x USB 2.0
1x USB OTG
1x Serial
1x 10/100Mbit RJ45 Port
1x Audio-In
1x Audio-Out
1x W-LAN-connector
1x HDMI
1x GPIO
1x SD-card slot
1x SIM-card slot

Expansion slots

1x MiniPCIe

Internal Connectors

1x SD-card
1x SIM-card
2x Serial
4x TTL UART
2x USB 2.0
18/24Bit LVDS
1x Line-In
1x Line-Out
1x Amplifier for 2x6W loudspeaker
1x SATA-Port
1x RTC
1x CAN Bus

Product Details

LCD Panel

IP Rating IP65 Front / IP40 Back
Screen diagonal (Inch/cm) 10.1/25.65
Display active screen size (cm) 21.70x13.60
Aspect ratio 16:10
Physical resolution 1280x800
External Maximum showable resolution 1920x1080
Colours displayed 16.7M
Brightness (cd/m2) 350
Contrast 700:1
Typical reaction time Tr/ Tf (ms) 10/15
Visual Angle horizontal/vertical (°) 170/170
Backlight / Backlight Lifetime (hours) LED / 20000

PC System

CPU Allwinner V40 QuadCore
Chipset Cortex A7
Graphic GPU ARM Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Audio Integrated HI-FI 100dB Audio Codec Dual analog mic, 2x6W amplifier
Memory 1x 1GB DDR3
Storage 8GB EMMC Flash
Network 10M/100M Network; W-LAN
OS Android 6.0

Touch Panel

Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H

Operation / Mechanical

Operating Temperature (°C) -10 - 60
Humidity Range (RH) 10% - 90%
Net weight (kg) 2.00
Gross weight (kg) 2.90 (incl. carton)
Housing material Rubber Front Case, Plastic Back Case
Housing (cm) L x W x H 27.60 x 19.20 x 3.35
Mounting VESA 100

Power

Power Indicator Green LED
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 8 - 18
Power Consumption (W) 11
Stand-By Consumption (W) <1

External Connectors

1x 8-18V DC-In (screwable)
2x USB 2.0
1x USB OTG
1x Serial
1x 10/100Mbit RJ45 Port
1x Audio-In
1x Audio-Out
1x W-LAN-connector
1x HDMI
1x GPIO
1x SD-card slot
1x SIM-card slot

Expansion slots

1x MiniPCIe

Internal Connectors

1x SD-card
1x SIM-card
2x Serial
4x TTL UART
2x USB 2.0
18/24Bit LVDS
1x Line-In
1x Line-Out
1x Amplifier for 2x6W loudspeaker
1x SATA-Port
1x RTC
1x CAN Bus

Note

Note: Please read description carefully. Do not base your order on the picture presented.
