Buy Faytech FT08J1900W4G64G, 8" Resistive Touch PC, J1900, 4 GB RAM

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Faytech, FT08J1900W4G64G, 8" Resistive Touch PC, J1900, 4 GB RAM, 64 GB SSD

FT08J1900W4G64G Includes Only:

Power Supply
3-Pin Power Connector
Driver DVD
Short Installation Manual
W-LAN Antenna
Stylus

For industrial and business applications, faytechs Touch PC series provide incredible stability due to its fanless silent operation, no moving parts design and aluminum housing. Using 5-wire resistive touch panels and faytechs subpixel free A+ LCD panels, it is cost-effective yet highly reliable solution for long term operation.

Features with all optional accessories:

Extensive industrial and consumer interfaces
High-quality black aluminum housing
Audio amplifier with 2x2W speakers
5-Wire Resistive touch technology
Pre-installed Linux Ubuntu
VESA 100 Mounting
Integrated W-LAN

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Subject to the use of all the optional accessories

PC System

CPU

Intel Celeron QuadCore J1900

Chipset

Intel E3800

Graphic GPU

Intel HD Graphics

Audio

Realtek 887 8-channel high definition audio codec, Audio Amplifier EUA 2012A

Memory

1x 4GB DDR3L SODimm

Storage

faytech Industrial 64GB SSD

Network

2x Realtek PCIe GB LAN 8111G; W-LAN

Driver Support

Win7/8/10; Linux; 32Bit/64Bit

Pre-installed OS

Linux Ubuntu

LCD Panel

IP rating

IP40

Screen diagonal (Inch/cm)

8/20.32

Display active screen size (cm)

16.20x12.20

Aspect ratio

4:3

Physical resolution

1024x768

Maximum showable resolution - DP

1920x1200

Colours displayed

16.7M

Brightness (cd/m²)

250

Contrast

700:1

Typical reaction time Tr/ Tf (ms)

6/14

Visual Angle horizontal/vertical (°)

150/150

Backlight / Backlight Lifetime (hours)

LED / 20,000

Touch Panel

Touch Technology

5-Wire Resistive

Touch Connector

USB

Touch Life (Contacts)

10 million in 1 location without failure

Surface Hardness

Surface Treatment

Anti-glare

Operation/Mechanical

Operating Temperature (°C)

-10 - +60

Humidity Range (RH)

10% - 90%

Net weight (kg)

2.15

Gross weight (kg)

2.65 (incl. carton)

Housing material

Aluminum

Housing (cm) L x W x H

21.60 x 18.30 x 5.66

Mounting

VESA 100

Power

Power Indicator

Green LED

Power Supply

100-240V ACDC active switching; 12V DC-Out

Working Power (V)

Power Consumption (W)

Stand-By Consumption (W)

Internal Connectors

1x 12V DC power connector (2-pin)
1x 4-pin SATA power connector
2x S-ATA 3GB/s ports
1x 5-pin LCD power connector
1x VGA pin header
1x SIM-card-Header (connected to MiniPCIe)
1x LVDS connector
1x S/PDIF output pin header
1x 4-pin (2x2W) audio amplifier connector
1x PS/2 keyboard/mouse connector (6-pin)
2x USB 2.0 header supports additional 4x USB 2.0 ports
3x RS232/RS485 COM, switchable in BIOS
1x 8-bit Digital I/O interface
1x Chassis Fan connector

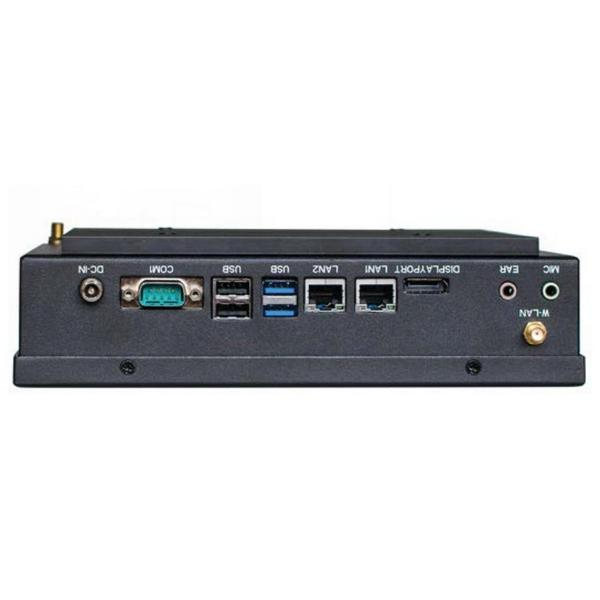

External Connectors

1x Display port
1x USB 3.0; 3x USB 2.0 ports
2x COM port Full-PIN (RS232/RS485; 5V/12V)
2x 10/100/1000Mbit RJ45 Ports
MIC-In, EAR-Out
2x W-LAN connector
1x 12V DC-In (screwable)

Expansion slots

1x PCIeX1 Straddle connector

Product Details

Subject to the use of all the optional accessories

PC System

CPU

Intel Celeron QuadCore J1900

Chipset

Intel E3800

Graphic GPU

Intel HD Graphics

Audio

Realtek 887 8-channel high definition audio codec, Audio Amplifier EUA 2012A

Memory

1x 4GB DDR3L SODimm

Storage

faytech Industrial 64GB SSD

Network

2x Realtek PCIe GB LAN 8111G; W-LAN

Driver Support

Win7/8/10; Linux; 32Bit/64Bit

Pre-installed OS

Linux Ubuntu

LCD Panel

IP rating

IP40

Screen diagonal (Inch/cm)

8/20.32

Display active screen size (cm)

16.20x12.20

Aspect ratio

4:3

Physical resolution

1024x768

Maximum showable resolution - DP

1920x1200

Colours displayed

16.7M

Brightness (cd/m²)

250

Contrast

700:1

Typical reaction time Tr/ Tf (ms)

6/14

Visual Angle horizontal/vertical (°)

150/150

Backlight / Backlight Lifetime (hours)

LED / 20,000

Touch Panel

Touch Technology

5-Wire Resistive

Touch Connector

USB

Touch Life (Contacts)

10 million in 1 location without failure

Surface Hardness

Surface Treatment

Anti-glare

Operation/Mechanical

Operating Temperature (°C)

-10 - +60

Humidity Range (RH)

10% - 90%

Net weight (kg)

2.15

Gross weight (kg)

2.65 (incl. carton)

Housing material

Aluminum

Housing (cm) L x W x H

21.60 x 18.30 x 5.66

Mounting

VESA 100

Power

Power Indicator

Green LED

Power Supply

100-240V ACDC active switching; 12V DC-Out

Working Power (V)

Power Consumption (W)

Stand-By Consumption (W)

Internal Connectors

1x 12V DC power connector (2-pin)
1x 4-pin SATA power connector
2x S-ATA 3GB/s ports
1x 5-pin LCD power connector
1x VGA pin header
1x SIM-card-Header (connected to MiniPCIe)
1x LVDS connector
1x S/PDIF output pin header
1x 4-pin (2x2W) audio amplifier connector
1x PS/2 keyboard/mouse connector (6-pin)
2x USB 2.0 header supports additional 4x USB 2.0 ports
3x RS232/RS485 COM, switchable in BIOS
1x 8-bit Digital I/O interface
1x Chassis Fan connector

External Connectors

1x Display port
1x USB 3.0; 3x USB 2.0 ports
2x COM port Full-PIN (RS232/RS485; 5V/12V)
2x 10/100/1000Mbit RJ45 Ports
MIC-In, EAR-Out
2x W-LAN connector
1x 12V DC-In (screwable)

Expansion slots

1x PCIeX1 Straddle connector
