Extech EX845 EX800 Series 1000A AC/DC True RMS Clamp/DMM Meter with IR Thermometer, Professional Test Lead Set & Bluetooth MeterLink

EX845: 1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™

AC/DC Clamp Meter/MultiMeter with built-in IR Thermometer and Wireless Capability

Includes:

• CAT IV test leads
• 9V battery
• Type K probe
• Pouch case
• Professional Test Lead Set

Bluetooth® Transmitter with METERLiNK™ Wirelessly transmits Voltage and Current readings to your FLIR high-definition infrared camera to incorporate meter readings with thermal images

Features:

• True RMS Current and Voltage measurements
• MultiMeter functions include AC/DC Voltage, Resistance, Capacitance, Frequency, Diode, and Continuity
• 1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
• 4000 count backlit display
• Peak hold captures inrush currents and Transients
• Built-in IR Thermometer with laser pointer is an excellent troubleshooter for locating hot spots and overheating motors
• Features include Data Hold and Min/Max and Auto Power off
• Autoranging with manual range button
• CAT IV -600V safety rating for added protection and True RMS feature gives you accurate readings of non-sinusoidal waveforms
• MeterLink™ Bluetooth transmitter Wirelessly transmits Voltage and Current readings to selected FLIR thermal imaging IR cameras to incorporate meter readings with thermal images

METERLiNK frees the Thermographer from the manual process of collecting field data
	Infrared cameras quickly locate problems with electrical equipment
	Collecting current measurements and associating them with the right component identified on an infrared image, can be a complicated and cumbersome process
	Manual data collection results in unnecessary complexity and risk. METERLiNK eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image

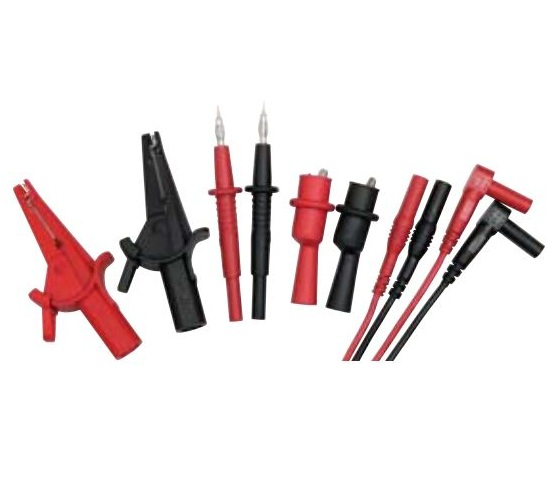

Professional Test Leads:

• 8-Piece Professional Test Lead set
• Two 42" (1m) PVC lead extensions with shrouded banana plugs at both ends
• Two modular 4" (102mm) Heavy Duty test probe handles with 0.16" (4mm) banana plug tip
• Two standard size, alligator clips with insulated rubber boot
• Two extra large, double-insulated, alligator clips with sharp teeth for piercing insulated wire. Jaws open to 0.8" (20mm)
