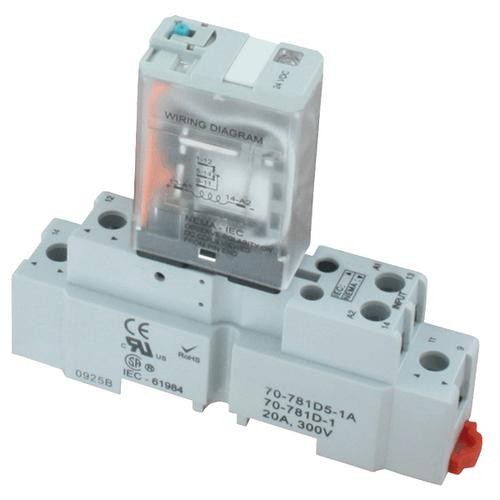

Dwyer, 781XAXRM4L-24A, 781XAXRM4L-24A, Series 781 SPDT Ice Cube Relays 24 VAC

SPDT ice cube relays, 15 amp rating, 24 VAC 50/60 Hz, coil resistance 180Ω

Features

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Operating and Load Voltage Range:	24 to 240 VAC; 24 VDC.
Electrical Connection:	Silver alloy plug-in contacts.
Switching Operation:	SPDT.
Electrical Rating:	15 A at 150 / 277 VAC (50/60Hz) or 28 VDC.
Temperature Limits:	Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C).
Power Consumption:	0.9 VA; 0.7W.
Cycle Life:	100,000 cycles (electrical); 10,000,000 cycles (mechanical).
Housing:	Plastic polycarbonate.
Weight:	1.02 oz (29 g).
Agency Approvals:	CE, CSA, RoHS, cUL, UL, cUR, UR.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Operating and Load Voltage Range:	24 to 240 VAC; 24 VDC.
Electrical Connection:	Silver alloy plug-in contacts.
Switching Operation:	SPDT.
Electrical Rating:	15 A at 150 / 277 VAC (50/60Hz) or 28 VDC.
Temperature Limits:	Storage: -40 to 185°F (-40 to 85°C); Operation: -40 to 131°F (-40 to 55°C).
Power Consumption:	0.9 VA; 0.7W.
Cycle Life:	100,000 cycles (electrical); 10,000,000 cycles (mechanical).
Housing:	Plastic polycarbonate.
Weight:	1.02 oz (29 g).
Agency Approvals:	CE, CSA, RoHS, cUL, UL, cUR, UR.

Note: Please read description carefully. Do not base your order on the picture presented.
