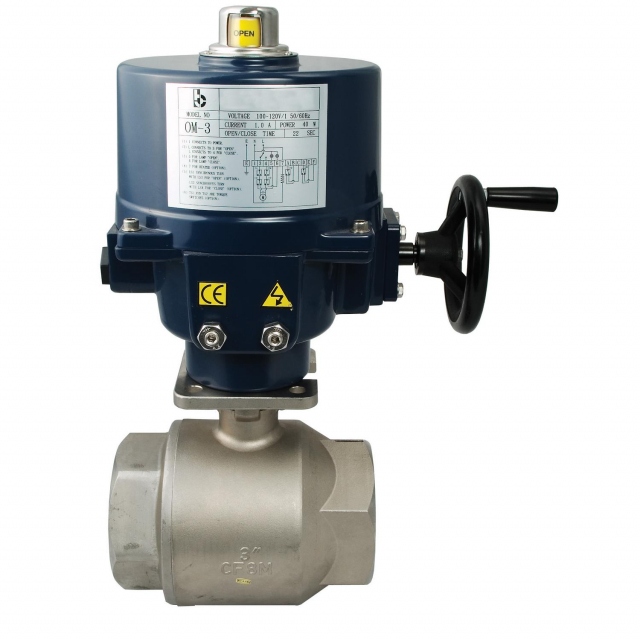

Dixon Valve BV2HG-30011-ES 3" 24VAC 2-Piece Stainless Ball Valve

Specifications

• ISO 9001, CS, CE and CSA-C US
• RoHS compliant

Features

• Valve has RTFE seats and seals, a blow-out proof stem, live-loading stem packing and an ISO 5211 mounting pad
• Electric actuator has lightweight powder coated aluminum alloy housing and is NEMA 4/4X waterproof and dustproof
• Actuator features extended duty cycle induction motor, high alloy steel gear train, H-insulation class, visual position indication, handwheel and space heater standard

Safety notes

• Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
• Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
