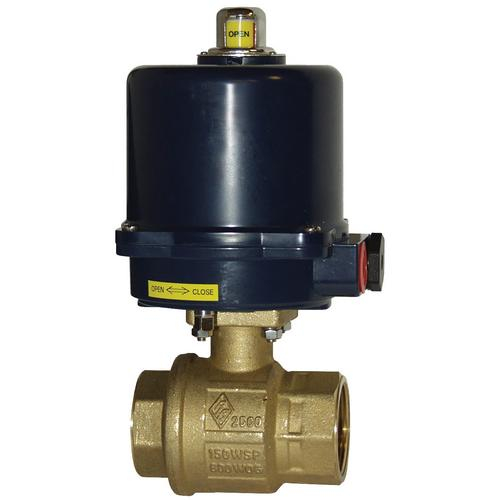

Dixon Valve BV2BV-20011-EK 2" Brass Ind. Fnpt 200V N4 W/Heater, Vlvs

Specifications

• ISO 9001, CS, CE and CSA-C US
• RoHS compliant

Features

• Valve has a brass ball, FKM elastomers, a blow-out proof brass stem, PTFE seats with double O-ring stem packing and an ISO 5211 mounting pad
• Electric actuator has lightweight powder coated aluminum alloy housing and is NEMA 4/4X waterproof and dustproof
• Actuator features extended duty cycle induction motor, high alloy steel gear train, H-insulation class, visual position indication, space heater and manual override standard
• Bracket & coupler included

Safety notes

• Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application.
• Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required.
• WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
