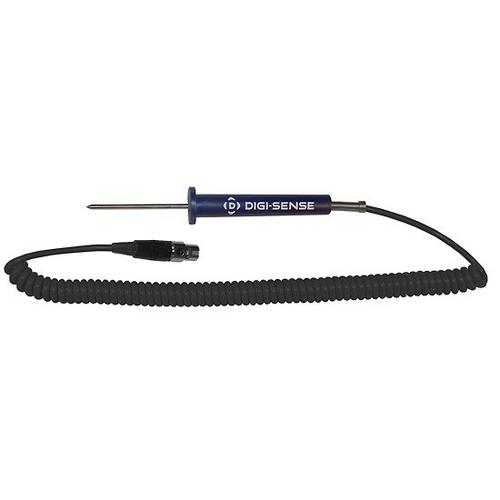

Digi-Sense WD-93821-10 General Purpose RTD Probe, 5ft Coil Cord

Digi-Sense, WD-93821-10, General Purpose RTD Probe, Length 2.5", 5ft Coil Cord

Features:

• Designed to Give the Same Accuracy and Benefits of a Standard RTD Probe in a Compact Economical Design
• Time Constant: 3 seconds or greater

Maximum error for probe assembly is +/-1.1°C + 0.12% of reading below 300°F, +/-0.35% of reading above 300°F. Alpha coefficient is 0.003850 omega / omega / °C (DIN IEC 751). Resistance at ice point (0°C) is 100 omega. Time constant is the time required to reach 63.2% of the new reading. To determine how long it will take to reach 99% of the new reading multiply the time constant by five. The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handle are rated to 220°F (104°C); PVC handle are rated to 200°F (93°C); Stainless Steel handle are rated at 450°F (232°C); Mini Connector are rated to 392°F (200°C).
