Buy Digi-Sense WD-93812-02, General Purpose Probes with PTFE-Coating

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Type:: Type: K

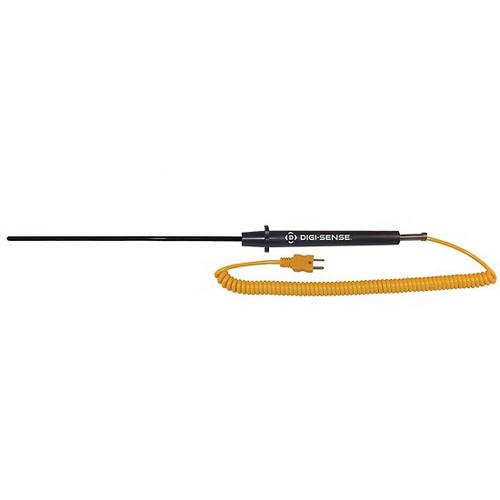

Digi-Sense, WD-93812-02, General Purpose Probes with PTFE-Coating, Len. 10", Diameter .145", Type K

Features:

Designed for Use with Corrosive Chemicals and Strong Acids.
Response Time: 2 seconds or greater.
ABS handle provide a light weight design for ease of use along with durability.
Probe handle feature a strain relief spring that protects the cable connection against damage due to repeated flexing and tugging.

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	400
Min Temperature (° C)	-150
Max Temperature (° C)	204
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini ANSI
Sheath material	316 Stainless Steel with PFA coating
Handle Material	ABS plastic
Sheath Length (in)	10
Handle Length (in)	5.5
Sheath Diameter (in)	0.145

Product Details

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	400
Min Temperature (° C)	-150
Max Temperature (° C)	204
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini ANSI
Sheath material	316 Stainless Steel with PFA coating
Handle Material	ABS plastic
Sheath Length (in)	10
Handle Length (in)	5.5
Sheath Diameter (in)	0.145

Note

Note: Please read description carefully. Do not base your order on the picture presented.
