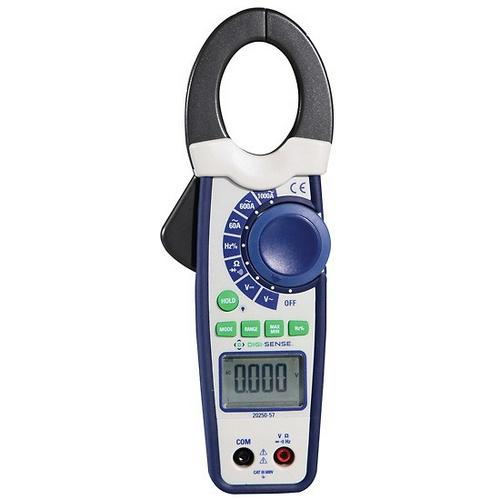

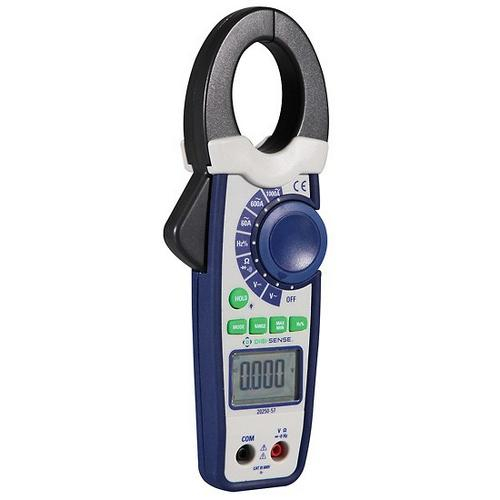

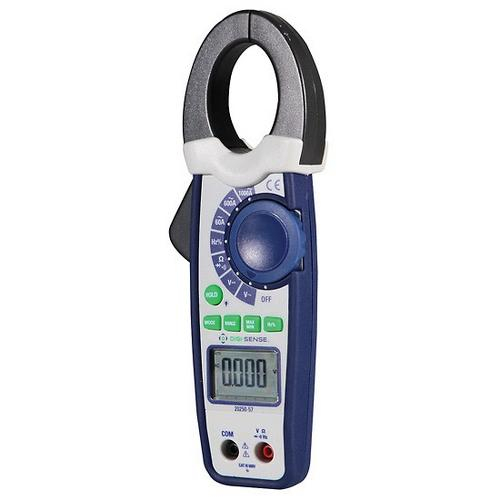

Digi-Sense, WD-20250-57, Clamp Meter with NIST-Traceable Calibration, 1000A AC

Instantly view power variations on the analog bar graph

Include:

Test leads, one 9 V battery, carrying case, and NIST-traceable calibration report supplied by InnoCal.

Features:

Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards
Large characters and backlight lets you read the display in all kinds of conditions
Easily select a function with a single rotary switch
Conveniently hold or “freeze” a reading for times when you can’t see the display
Be confident - the best measurement range is automatically selected
Stay safe and prevent damage with overload protection
Get increased durability with rugged double-molded housing and ergonomic grip
CAT III-600 V safety rating

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

DC Min (Volts)	0.6
DC Max (Volts)	1000
DC Voltage Accuracy	±2.0%
AC Min (Volts)	6
AC Max (Volts)	750
Ac Voltage Accuracy	±2.0%
AC Min (amps)	60
AC Max (amps)	1000
AC Current Accuracy	±2.0%
Resistance Min (Ω)	600
Resistance Max (MΩ)	60
Capacitance Min (nF)	40
Capacitance Max (nF)	4000000
Capacitance Accuracy	±5.0%
Frequency Min (Hz)	9.999
Frequency Max (MHz)	10
Frequency Accuracy	1.2% reading
Resistivity Accuracy	±3.5%
Continuity	Yes
Continuity / Diode Test	Yes
Diode Tester	0.3 mA
Max Temperature (° F)	1832
Max Temperature (° C)	1000
Temperature Accuracy	±3.0%
Count	6000
Display	6000 counts LCD
Max Clamp Size	1.2
Safety Rating	CAT II 2,000 V, Pollution degree 2, CAT III 600 V
Power	9 V battery

DC Min (Volts)	0.6
DC Max (Volts)	1000
DC Voltage Accuracy	±2.0%
AC Min (Volts)	6
AC Max (Volts)	750
Ac Voltage Accuracy	±2.0%
AC Min (amps)	60
AC Max (amps)	1000
AC Current Accuracy	±2.0%
Resistance Min (Ω)	600
Resistance Max (MΩ)	60
Capacitance Min (nF)	40
Capacitance Max (nF)	4000000
Capacitance Accuracy	±5.0%
Frequency Min (Hz)	9.999
Frequency Max (MHz)	10
Frequency Accuracy	1.2% reading
Resistivity Accuracy	±3.5%
Continuity	Yes
Continuity / Diode Test	Yes
Diode Tester	0.3 mA
Max Temperature (° F)	1832
Max Temperature (° C)	1000
Temperature Accuracy	±3.0%
Count	6000
Display	6000 counts LCD
Max Clamp Size	1.2
Safety Rating	CAT II 2,000 V, Pollution degree 2, CAT III 600 V
Power	9 V battery

Note: Please read description carefully. Do not base your order on the picture presented.
