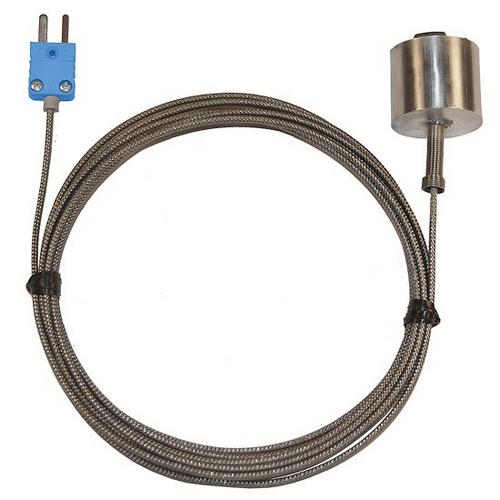

Digi-Sense, WD-08525-86, Dropping / Magnetic Probe, Length 1.5", 10ft SS Braid Cable, Type T

Features:

Designed for Monitoring a Wide Range of Flat Surfaces
Easily attach to any ferrous surface
Ideal for long term installation
Magnet strength is 15lbs max
Response Time: 1.25 seconds or greater

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Probe Type	T
Min Temperature (° F)	-328
Max Temperature (° F)	500
Min Temperature (° C)	-200
Max Temperature (° C)	260
Temperature Accuracy	+/-2.7°F (+/-1.5°C) or +/-0.4% of reading above 32°F (0°C); +/-0.8% of reading below 32°F (0°C)
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Aluminum Housing
Sheath Length (in)	1.5
Cable Type	Braided SS
Cable Length (in)	120

Product Details

Probe Type	T
Min Temperature (° F)	-328
Max Temperature (° F)	500
Min Temperature (° C)	-200
Max Temperature (° C)	260
Temperature Accuracy	+/-2.7°F (+/-1.5°C) or +/-0.4% of reading above 32°F (0°C); +/-0.8% of reading below 32°F (0°C)
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Aluminum Housing
Sheath Length (in)	1.5
Cable Type	Braided SS
Cable Length (in)	120

Note

Note: Please read description carefully. Do not base your order on the picture presented.
