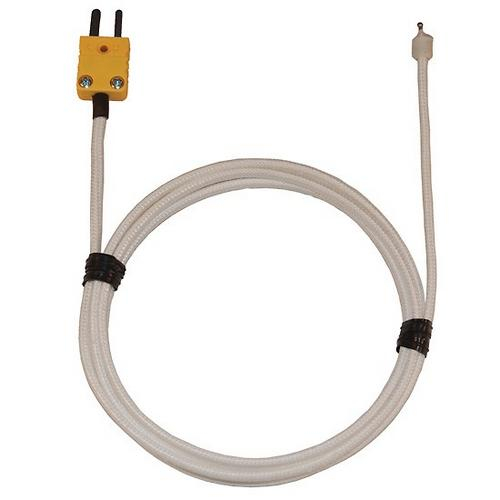

Digi-Sense, WD-08467-64, High Temperature Ceramic Fiberglass-Insulated Probe, 20-Gauge, Type K

Features:

Ceramic Fiber Insulated Wire Used for High Temperature Measurements.
Ceramic fiber cannot be handled after 800°F (426°C) due to flaking of insulation.
Response Time: 0.75 seconds or greater
Exposed-junction probes are not recommended for use with aqueous solutions.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	2000
Min Temperature (° C)	-150
Max Temperature (° C)	1093
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Hi-Temp Fiberglass Insulated Wire
Sheath Length (in)	60
Cable Length (in)	60
Cable Wire Gauge (Ga)	20

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	2000
Min Temperature (° C)	-150
Max Temperature (° C)	1093
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Hi-Temp Fiberglass Insulated Wire
Sheath Length (in)	60
Cable Length (in)	60
Cable Wire Gauge (Ga)	20

Note: Please read description carefully. Do not base your order on the picture presented.
