Buy Digi-Sense WD-08439-72, Compact Surface Probe, Mini Connector, Exposed

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Type:: Type: K
Dimensions:: Dimensions: Sheath Length 4.75"

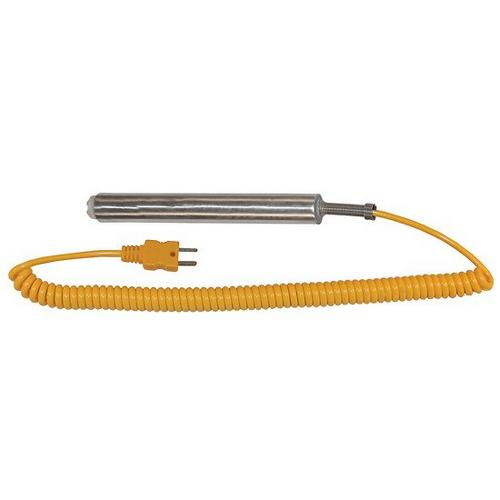

Digi-Sense, WD-08439-72, Compact Surface Probe, Len. 4.5", 5ft Coil, Mini Connector, Exposed / Type K

Features:

Use to monitor hot plates, furnaces, molds, or any other flat surface
Ideal for hard to reach places or lower temperature applications
Response Time: 1.25 seconds or greater

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1200
Min Temperature (° C)	-250
Max Temperature (° C)	649
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Aluminum housing with Ceramic
Handle Material	ABS plastic
Sheath Length (in)	4.75
Handle Length (in)	5.5
Cable Type	Coiled
Cable Length (in)	60

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1200
Min Temperature (° C)	-250
Max Temperature (° C)	649
Temperature Accuracy	+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Mini ANSI
Sheath material	Aluminum housing with Ceramic
Handle Material	ABS plastic
Sheath Length (in)	4.75
Handle Length (in)	5.5
Cable Type	Coiled
Cable Length (in)	60

Note

Note: Please read description carefully. Do not base your order on the picture presented.
