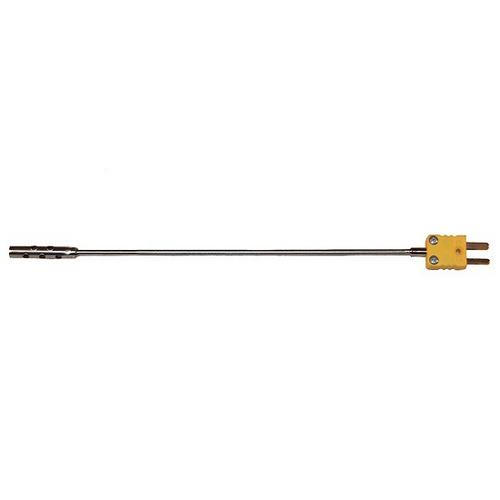

Digi-Sense WD-08117-55 Detachable Air / Gas Probe, Mini Connector

Type: K
  • Brand Digi-Sense
  • Part # WD-08117-55
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: K

Digi-Sense, WD-08117-55, Detachable Air / Gas Probe, Mini Connector, Length 8", Exposed / Type K

Features:

  • Probes Ideal for Measuring a Wide Range of Air Temperatures
  • Can be plugged directly into your meter.
  • Exposed Junction is protected by a rigid stainless steel shield to provide a fast response in an industrial environment
  • Response Time: 1.75 seconds or greater

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Probe TypeJ
Min Temperature (° F)-250
Max Temperature (° F)572
Min Temperature (° C)-150
Max Temperature (° C)300
Temperature Accuracy+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
JunctionExposed
Connector TypeMini ANSI
Sheath material316 Stainless Steel; Rigid SS Shield
Sheath Length (in)8
Product Details
Probe TypeJ
Min Temperature (° F)-250
Max Temperature (° F)572
Min Temperature (° C)-150
Max Temperature (° C)300
Temperature Accuracy+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
JunctionExposed
Connector TypeMini ANSI
Sheath material316 Stainless Steel; Rigid SS Shield
Sheath Length (in)8
Note

Note: Please read description carefully. Do not base your order on the picture presented.
