Digi-Sense WD-08117-50 Detachable Thermocouple Surface Probe, Exposed

  • Brand Digi-Sense
  • Part # WD-08117-50
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

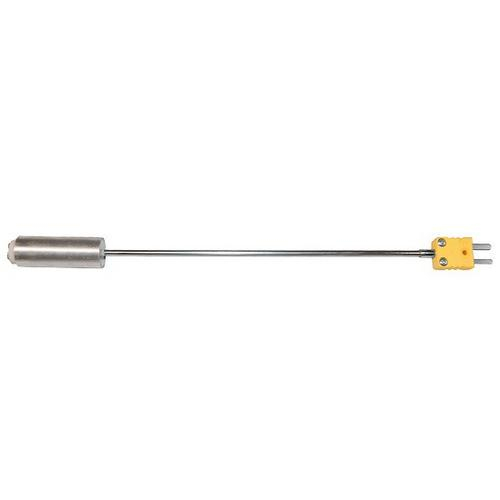

Digi-Sense, WD-08117-50, Detachable Thermocouple Surface Probe, Length 8", Exposed / Type K

Features:

  • Designed to monitor a temperature on a wide range of flat surfaces
  • Can be plugged directly into your meter.
  • Easily connected to a handle for general purpose use.
  • Use to monitor hot plates, furnaces, molds, or any other flat surface
  • Response Time: 1.25 seconds or greater

The temperature range is for the probe tip only. The handle material may be affected if the probe is rated higher than the handle depending on exposure time, application, and handle material. ABS handles are rated to 220°F (104°C); PVC handles are rated to 200°F (93°C); Stainless Steel handles are rated at 450°F (232°C); Mini Connectors are rated to 392°F (200°C).

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Probe TypeJ
Min Temperature (° F)-250
Max Temperature (° F)1200
Min Temperature (° C)-150
Max Temperature (° C)649
Temperature Accuracy+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
JunctionExposed
Connector TypeMini ANSI
Sheath material316 Stainless Steel; Aluminum housing
Sheath Length (in)8
Product Details
Probe TypeJ
Min Temperature (° F)-250
Max Temperature (° F)1200
Min Temperature (° C)-150
Max Temperature (° C)649
Temperature Accuracy+/-3.0°F (1.1°C) or +/-0.4% reading above 212°F(100°C); +/-3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); +/-7.2°F (4°C) or +/-4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
JunctionExposed
Connector TypeMini ANSI
Sheath material316 Stainless Steel; Aluminum housing
Sheath Length (in)8
