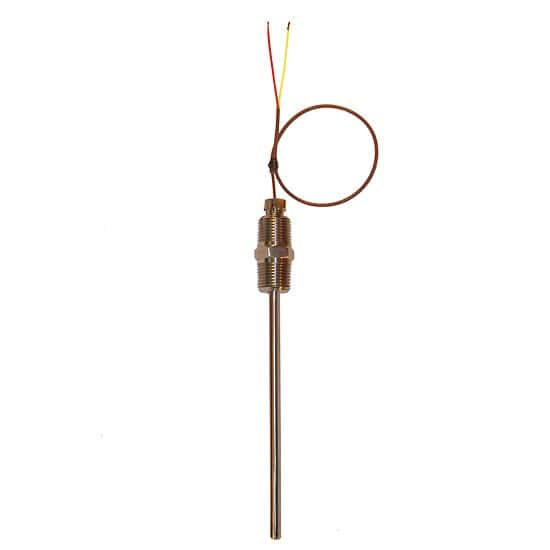

Digi-Sense, 18525-09, Type J Spring Loaded Ind Thermocouple Probe Probe 6" L, 12" Ext 0.250 Dia, Grounded Junction

Designed to be an economical way to replace broken industrials probes.

Features:

The probes can be installed with current housing without having to purchase a whole industrial assembly
Response Time: 3.75 seconds or greater
Each probe comes with 1/2" NPT insertion threads
Probes are spring loaded which allows the probe to be bottomed out into a thermowell
Probes are welded and sealed which allows for direct insertion into a vessel
Each probe comes with a color coded ANSI stripped leads.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Probe Type	J
Min Temperature (° F)	32
Max Temperature (° F)	1400
Min Temperature (° C)	0
Max Temperature (° C)	760
Temperature Accuracy	±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Junction	Grounded
Connector Type	Stripped wire; 1/2" NPT(M) x 1/2" NPT(M)
Sheath material	316 Stainless Steel
Sheath Length	6"
Sheath Diameter	0.25"

Probe Type	J
Min Temperature (° F)	32
Max Temperature (° F)	1400
Min Temperature (° C)	0
Max Temperature (° C)	760
Temperature Accuracy	±4.0°F (2.2°C) or ±0.4% reading above 32° (0°C); ±4.0% of reading below 32°F (0°C)
Junction	Grounded
Connector Type	Stripped wire; 1/2" NPT(M) x 1/2" NPT(M)
Sheath material	316 Stainless Steel
Sheath Length	6"
Sheath Diameter	0.25"

Note: Please read description carefully. Do not base your order on the picture presented.
