Buy Digi-Sense 18524-75, Inconel Type K Thermocouple Probe, Quick, 18"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

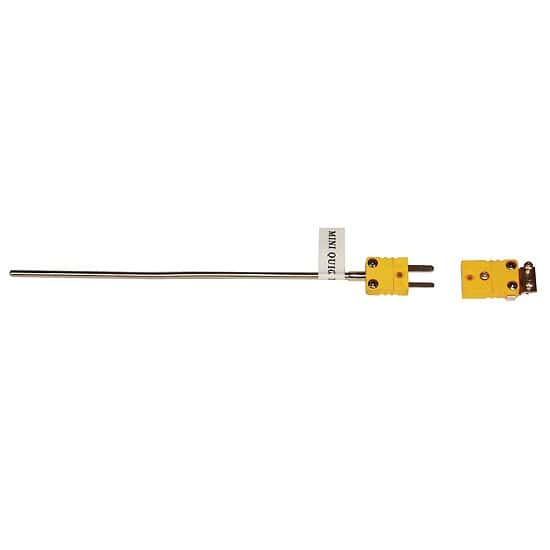

Digi-Sense, 18524-75, Inconel Type K Thermocouple Probe, Quick Dis-connector, 18" L x 1/16" Dia, Ungrounded

Features:

Ideal for measuring liquids, gases, or semi solids
Designed with ICONEL 600 sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Length	18"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1590
Min Temperature (° C)	-150
Max Temperature (° C)	865
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	Inconel
Sheath Length	18"
Sheath Diameter	0.0625"

Length	18"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1590
Min Temperature (° C)	-150
Max Temperature (° C)	865
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Ungrounded
Connector Type	Mini Connector
Sheath material	Inconel
Sheath Length	18"
Sheath Diameter	0.0625"

Note: Please read description carefully. Do not base your order on the picture presented.
