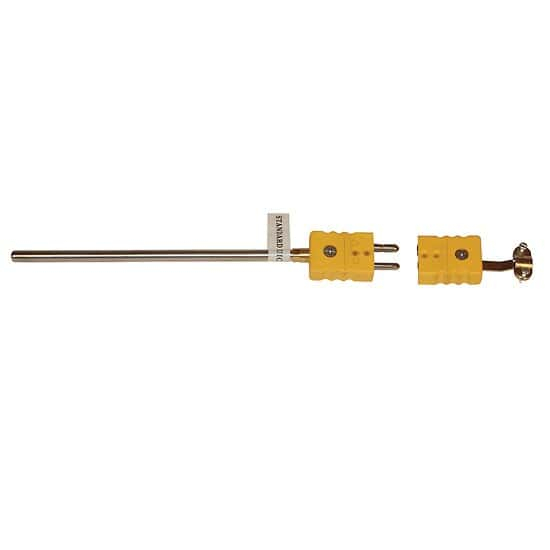

Buy Digi-Sense 18524-32, Type K Thermocouple Probe Quick Disconnector, 18"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Digi-Sense, 18524-32, Type K Thermocouple Quick Dis-connector, with Std-Connector, 18" L, .188 Diameter Grounded Junction

Features:

Ideal for measuring liquids, gases, or semi solids
Designed with 316 Stanless Steel sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Length	18"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1650
Min Temperature (° C)	-150
Max Temperature (° C)	899
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Standard Connector
Sheath material	316 Stainless Steel
Sheath Length	18"
Sheath Diameter	0.1875"

Length	18"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1650
Min Temperature (° C)	-150
Max Temperature (° C)	899
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Standard Connector
Sheath material	316 Stainless Steel
Sheath Length	18"
Sheath Diameter	0.1875"

Note: Please read description carefully. Do not base your order on the picture presented.
