Buy Digi-Sense 18523-59, Inconel Type K Thermocouple Probe Disconnector 6"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

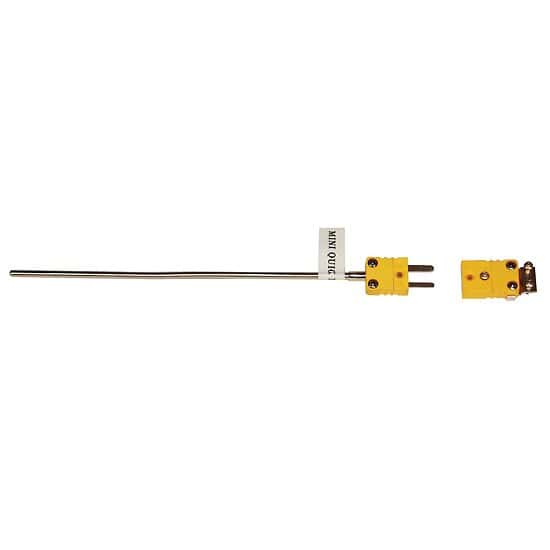

Digi-Sense, 18523-59, Inconel Type K Thermocouple Probe, Quick Dis-connector, 6" L x 1/16" Dia, Grounded

Features:

Ideal for measuring liquids, gases, or semi solids
Designed with ICONEL 600 sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Length	6"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1590
Min Temperature (° C)	-150
Max Temperature (° C)	865
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini Connector
Sheath material	Inconel
Sheath Length	6"
Sheath Diameter	0.0625"

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Length	6"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	1590
Min Temperature (° C)	-150
Max Temperature (° C)	865
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Grounded
Connector Type	Mini Connector
Sheath material	Inconel
Sheath Length	6"
Sheath Diameter	0.0625"

Note: Please read description carefully. Do not base your order on the picture presented.
