Buy Digi-Sense 18523-19, Type K Thermocouple Probe Quick Disconnector, 6"

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

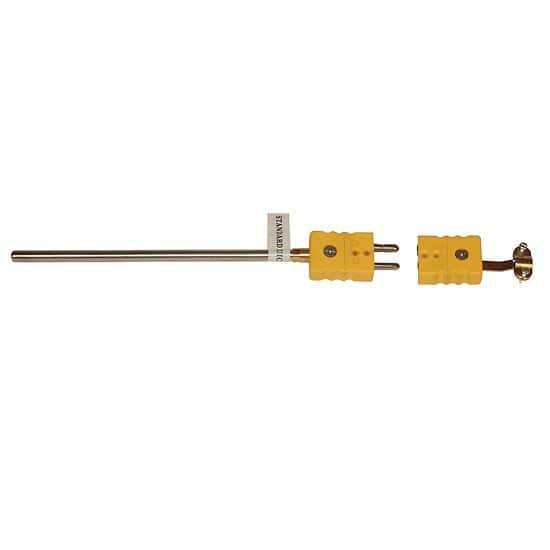

Digi-Sense, 18523-19, Type K Thermocouple Quick Dis-connector, with Std-Connector, 6" L, .125 Diameter Exposed Junction

Features:

Ideal for measuring liquids, gases, or semi solids
Designed with ICONEL 600 sheath
Response Time: 1.2 - 5 seconds or greater
Includes a stand alone female connector for instalation to a thermocouple extension cable
Each probe comes with a color coded ANSI dual standard connector.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Length	6"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	572
Min Temperature (° C)	-150
Max Temperature (° C)	300
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Standard Connector
Sheath material	Inconel
Sheath Length	6"
Sheath Diameter	0.125"

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Length	6"
Probe Type	K
Min Temperature (° F)	-250
Max Temperature (° F)	572
Min Temperature (° C)	-150
Max Temperature (° C)	300
Temperature Accuracy	±3.0°F (1.1°C) or ±0.4% reading above 212°F(100°C); ±3.6°F (2.2°C) or 2% of reading between -58 to 211°F (-50 to 99°C); ±7.2°F (4°C) or ±4% of reading between -60 to -238 (-51 to -150°C), whichever is greater
Junction	Exposed
Connector Type	Standard Connector
Sheath material	Inconel
Sheath Length	6"
Sheath Diameter	0.125"

Note: Please read description carefully. Do not base your order on the picture presented.
