Buy Climax Metal ISCC-137-137-KW, ISCC-Series Clamp Coupling, Steel, BO

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Size:: Size: 1-3/8" x 1-3/8"
Keyway:: Keyway: with Keyway
Material:: Material: Steel, Black Oxide

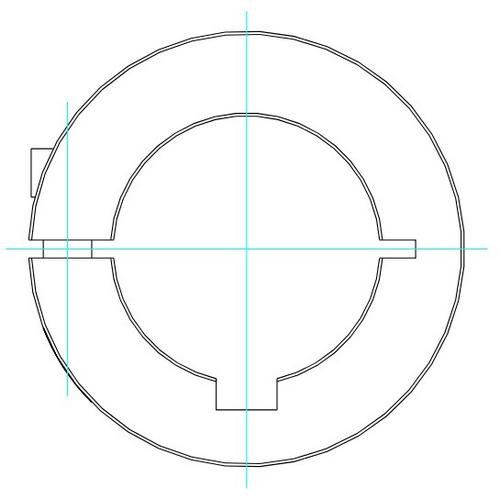

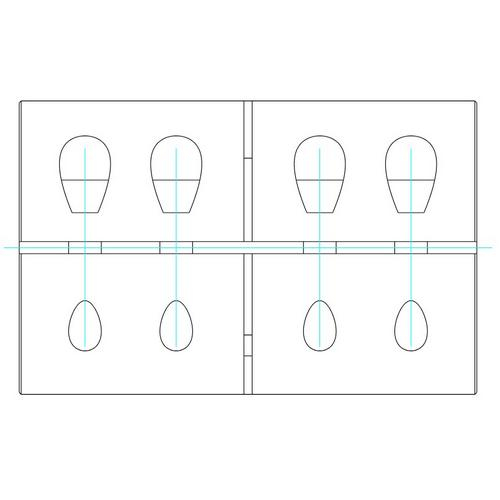

Climax Metal, ISCC-137-137-KW, ISCC-Series 1-3/8" x 1-3/8" Clamp Coupling, Steel, Black Oxide Keyway

Black Oxide Steel One-Piece Industry Standard Clamping Coupling with Keyway.

Features:

High axial load & torque capacity.
Does not mar the shaft.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

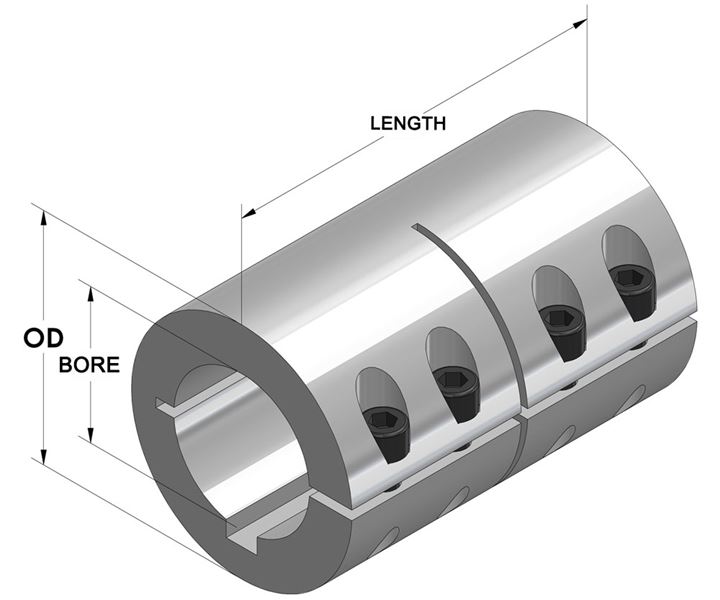

Bore - 1-3/8 in
2nd Bore - 1-3/8 in
OD - 2-1/4 in
Length - 3-1/2 in

Style

One-Piece Clamp

Keyway Size

5/16 x 5/32 in

Material

Steel, ASTM A108

Finish

Black Oxide

Clamp Screw

Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 1/4-28 x 3/4

Recessed Screw

Approximate Weight

37.00 oz

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Bore - 1-3/8 in
2nd Bore - 1-3/8 in
OD - 2-1/4 in
Length - 3-1/2 in

Style

One-Piece Clamp

Keyway Size

5/16 x 5/32 in

Material

Steel, ASTM A108

Finish

Black Oxide

Clamp Screw

Hex Socket Cap Screw, 3A Thread, Steel, ASTM A574: 1/4-28 x 3/4

Recessed Screw

Approximate Weight

37.00 oz

Note

Note: Please read description carefully. Do not base your order on the picture presented.
